Wilier

BIKE WILIER ADLAR GRX DI2 1X12 GRAFF XL

SKU: BI1038

$5,350.00

Adlar

Dare to adventure

When riding, for every cyclist it's a true rite of passage. Your frame of mind at the starting point is never the same as when you arrive. Regardless of how you perceive fatigue, you change within. And so does your view of the world around you. Every adventure is an evolution.
Adlar originates from this tension. A bike as a medium for giving things true meaning and bringing clarity to your vision of the world. An object that together evolves, changes and transforms itself. Isn't this the definition of gravel?

Look at our bikes. Rave SLR: competition. Jena, Jaroon and Jareen: versatile, equipped with different frames in carbon fibre and aluminium. It was clear that gravel is, and increasingly will be, adventure, a more or less conscious way of capturing its forms and meanings through journey. Ups, downs, chance meetings, hours and hours spent riding in total autonomy, without feeling the rush of time limits. On your own or in company.

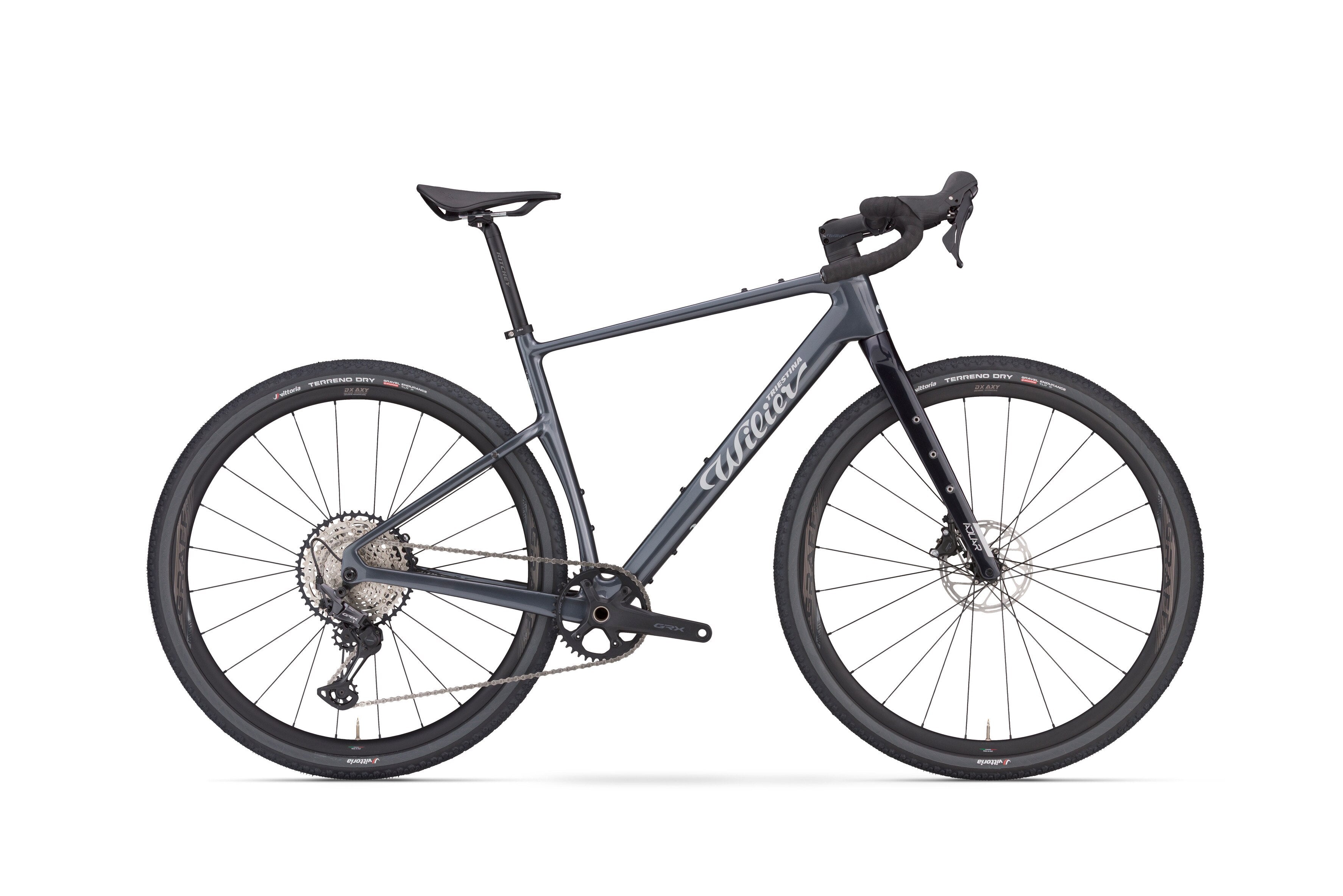

Color:Stone Dark Glossy

Variant

BIKE WILIER ADLAR GRX DI2 1X12 GRAFF XL

$5,350.00

MAXIMUM ADDITIONAL LOAD OF 35 KG
Adlar is made for bikepacking, for explorers, for bike travellers. The structure of the carbon fibre frame has been reinforced to allow a maximum additional load of 35 kg. This feature has been paired with new designs, a careful study of the geometries and completely integrated cable routing.

SOMETHING DIFFERENT

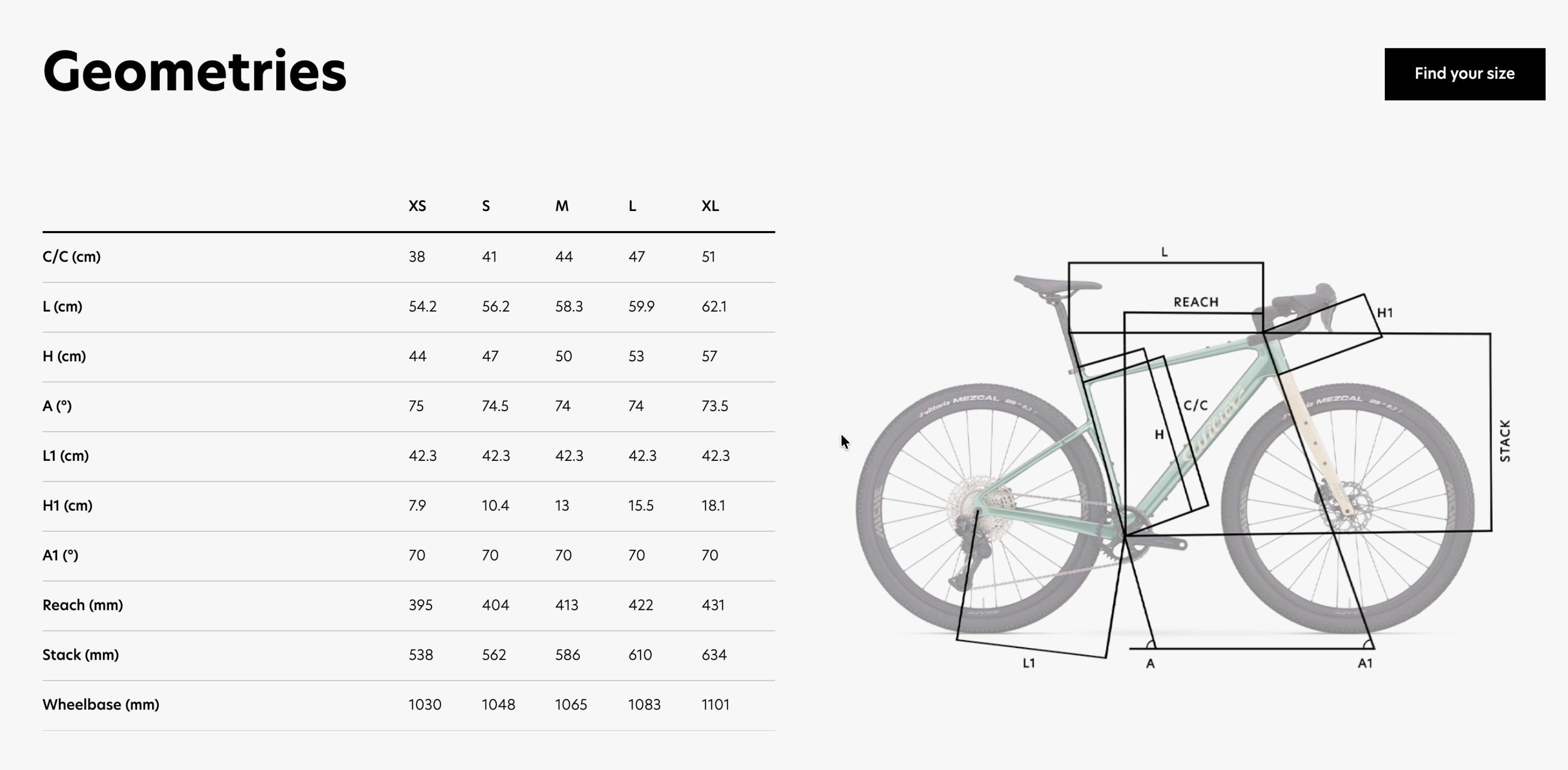

The frame weighs 1100 g and comes in five sizes: XS, S, M, L, XL. The geometries derive from the mountain bike: the frame triangle develops horizontally, the reach is quite pronounced. This solutions make it possible to use a shorter handlebar stem that works in synergy with the open steering angle (70°). A transformation that translates into better handling and control on the more demanding trails with a fully loaded bike.

READY FOR CHANGE
The generous tIre clearance is made to accommodate any 52 mm (52-622) gravel tIre up to mountain bike tIres measuring 29 x 2.00". The frame has been designed to fit a fork with extra-length blades. This configuration makes it easier to install a suspension fork (40 mm max travel compatible with the 1"1/4 - 1"1/2 conical headset series) without changing the frame overall geometries. Also, the opening on the fork's right stem allows the passage of the dynamo hub cable, if used. Even the 27.2 mm seatpost can be replaced with a dropper post.

FIXING AND LOAD POINTS
The front and back carriers load the weight of the bags onto the thru axles that pass through the frame and fork. This was done to reduce any structural stress on the Adlar. Other fixing points offer stability and the option of installing a third bottle holder or a tool bag under the down tube, in addition to a top tube bag. The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.

BIKEPACKING KIT
The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.

FIXING AND LOAD POINTS
The generous tIre clearance is made to accommodate any 52 mm (52-622) gravel tIre up to mountain bike tIres measuring 29 x 2.00".

INTEGRATED MUDGUARD
All setups feature exclusively single-crown transmission. This choice has made it possible to free the vertical tube from the derailleur support. In this area the forms have been squeezed to recreate a sort of small integrated mudguard.

Features

BIKEPACKING KIT
The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.

FIXING AND LOAD POINTS
The generous tIre clearance is made to accommodate any 52 mm (52-622) gravel tIre up to mountain bike tIres measuring 29 x 2.00".

Specifications

Frame & Fork
Frame	Adlar - Carbon Monocoque NHU-MOD
Frame Weight	1190g ±5%
Fork	Adlar - Carbon Monocoque NHU-MOD
Fork Weight	470g ±5%
Headset	Custom Superslim 1-1/4" Upper BR \| FSA MR137 1-1/4" Lower BR
Axle	Miche Thru Axle 12x126.5F 12x172.5R
Cockpit
Handlebar	Ritchey Comp Corralitos Flare Drop Bar Alloy
H-Bar Weight	350g ±5%
Stem	Ritchey \| Wilier Stemma S2 Alloy
Saddle & Seatpost
Seatpost	Ritchey \| Wilier Seatpost Alloy 27.2mm
Saddle	Selle Royal SRX Open Athletic Unitech
Drivetrain
Shifters	Shimano GRX Di2
Rear Derailleur	Shimano GRX RD-RX827-SGS
Crankset	Shimano GRX FC-RX610-1 40T
Bottom Bracket	Shimano Pressfit 86.5x41
Cassette	Shimano CS-M6100-12 10-51T
Chain	Shimano CN-M6100
Braking
Brakes	Shimano GRX BR-RX410
Rotors	Shimano RT-CL700 160/160
Wheels & Tires
Wheels	Miche Graff
Tires	Vittoria Mezcal III 29x2.1 Rigid Full Black

Disclaimer

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
