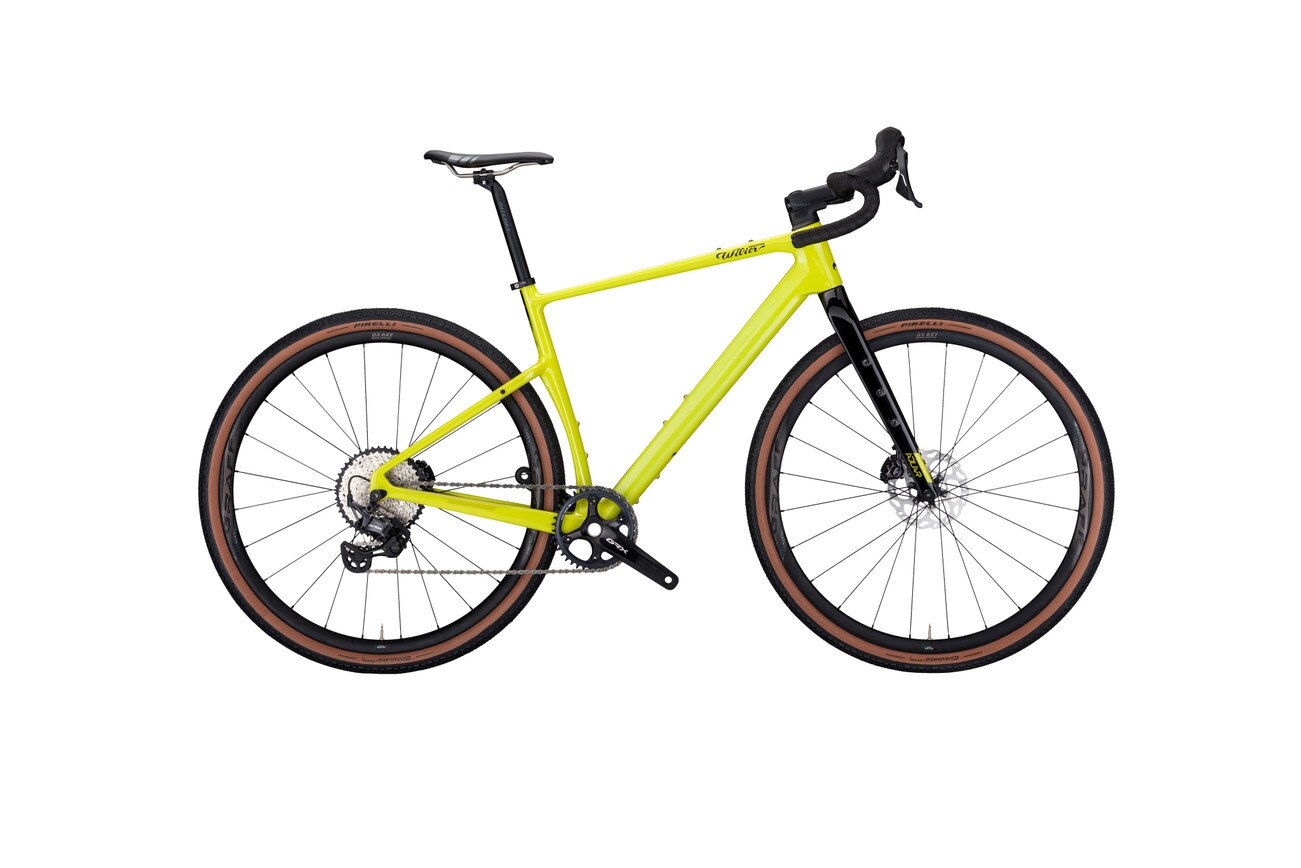

BIKE WILIER ADLAR SHIMANO GRX 1x11 CONTACT

Wilier

BIKE WILIER ADLAR SHIMANO GRX 1x11 CONTACT

SKU: BI9104

$4,500.00

$5,200.00

Adlar

Dare to adventure

When riding, for every cyclist it's a true rite of passage. Your frame of mind at the starting point is never the same as when you arrive. Regardless of how you perceive fatigue, you change within. And so does your view of the world around you. Every adventure is an evolution.
Adlar originates from this tension. A bike as a medium for giving things true meaning and bringing clarity to your vision of the world. An object that together evolves, changes and transforms itself. Isn't this the definition of gravel?

Look at our bikes. Rave SLR: competition. Jena, Jaroon and Jareen: versatile, equipped with different frames in carbon fibre and aluminium. It was clear that gravel is, and increasingly will be, adventure, a more or less conscious way of capturing its forms and meanings through journey. Ups, downs, chance meetings, hours and hours spent riding in total autonomy, without feeling the rush of time limits. On your own or in company.

Color:GREY/YELLOW GLOSSY

Variant

BIKE WILIER ADLAR SHIMANO GRX 1x11 CONTACT

$4,500.00

$5,200.00

The frame weighs 1100 g and comes in five sizes: XS, S, M, L, XL. The geometries derive from the mountain bike: the frame triangle develops horizontally, the reach is quite pronounced. This solutions make it possible to use a shorter handlebar stem that works in synergy with the open steering angle (70°).

A transformation that translates into better handling and control on the more demanding trails with a fully loaded bike.

The frame has been designed to fit a fork with extra-length blades. This configuration makes it easier to install a suspension fork (40 mm max travel compatible with the 1"1/4 - 1"1/2 conical headset series) without changing the frame overall geometries.

The opening on the fork's right stem allows the passage of the dynamo hub cable, if used. Even the 27.2 mm seatpost can be replaced with a dropper post.

The front and back carriers load the weight of the bags onto the thru axles that pass through the frame and fork. This was done to reduce any structural stress on the Adlar.

Other fixing points offer stability and the option of installing a third bottle holder or a tool bag under the down tube, in addition to a top tube bag.

All configurations feature exclusively single-drivetrain transmission. This choice has made it possible to free the vertical tube from the derailleur support. In this area the forms have been squeezed to recreate a sort of small integrated mudguard.

The generous tyre clearance is made to accommodate any 52 mm (52-622) gravel tyre up to mountainbike tyres measuring 29 x 2.00".

The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.

Features

The generous tyre clearance is made to accommodate any 52 mm (52-622) gravel tyre up to mountainbike tyres measuring 29 x 2.00".

The accessories kit is completed with the mudguards (sold separately) and a set of 4 quick-hook bags made in partnership with Miss Grape.

Specifications

Frame & Fork
Frame	Adlar - Carbon Monocoque NHU-MOD
Frame Weight	1190g ±5%
Fork	Adlar - Carbon Monocoque NHU-MOD
Fork Weight	470g ±5%
Headset	Wilier Custom Bearings Superslim
Cockpit
Handlebar	Ritchey Comp Corralitos
Stem	Wilier Stemma S
Saddle & Seatpost
Seatpost	Ritchey Comp 2-Bolt V2 ALU
Saddle	Wilier Saddle Road Titan Rail M 245-144
Drivetrain
Groupset	Shimano GRX 1x11
Shifters	Shimano GRX ST-RX600
Rear Derailleur	Shimano GRX RD-RX812
Crankset	Shimano GRX FC-RX600-1 40T
Bottom Bracket	Shimano Pressfit BBRS500PB
Cassette	Shimano CS-M8000-11 11-42T
Chain	Shimano GRX CN-HG601-11
Braking
Brakes	Shimano GRX BR-RX400
Rotors	Shimano Center Lock SM-RT70 160mm / 160mm
Wheels & Tires
Wheelset	Miche Contact
Tires	Pirelli Cinturato Adventure 700x45

Setups that feature the bikepacking kit include the front carrier, the rear carrier, the fixing pins and a set of 4 bags.

The carriers can be mounted on the bike using the provided fixing pins. The front pin measures 12x157 – M12x1.5, while the rear pin measures 12x197 – M12x1.5

Adlar is not designed for mounting a front derailleur; therefore, it is impossible to fit a double crankset.

Disclaimer

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
