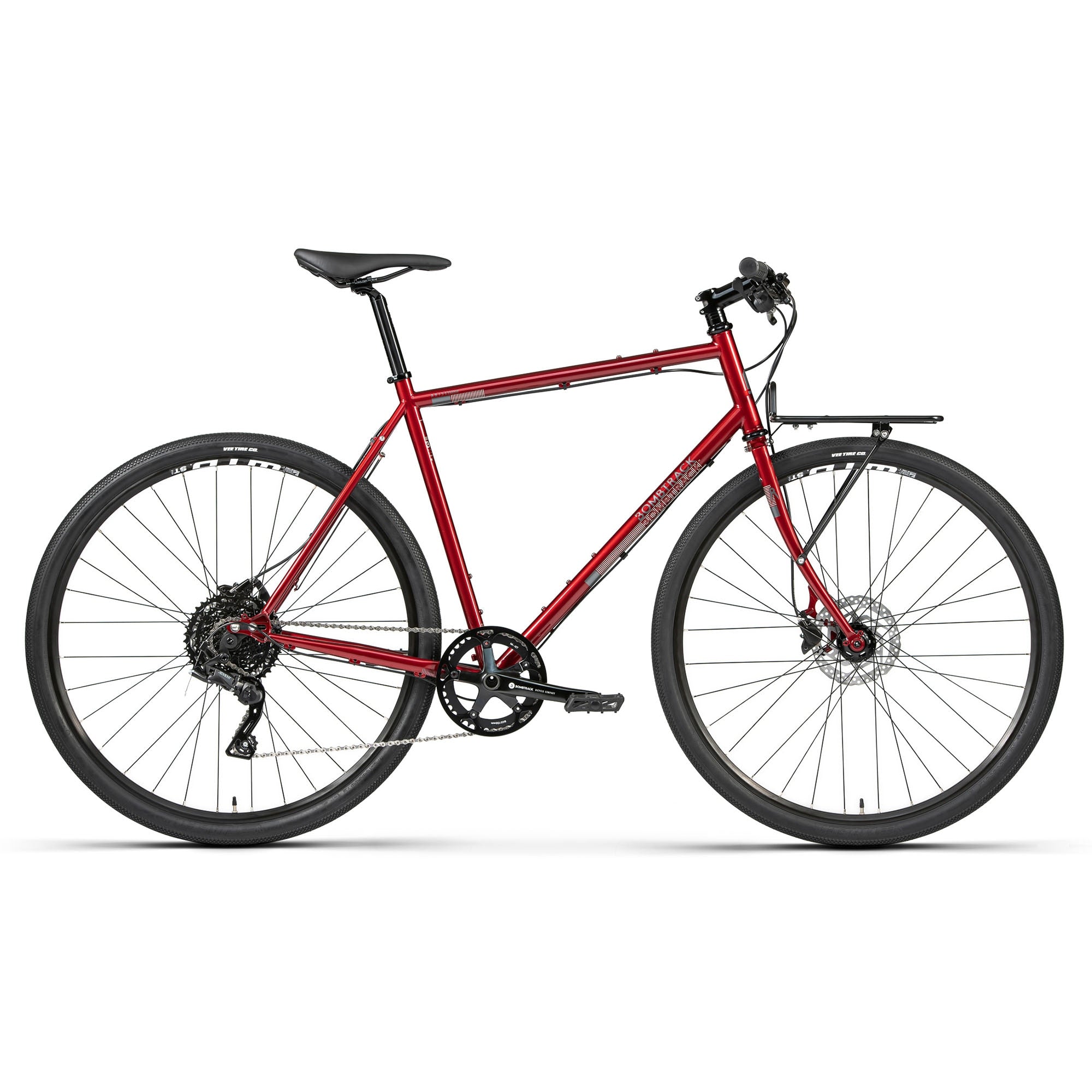

BOMBTRACK ARISE GEARED

SPECIFICATIONS

Color 1	Glossy Metallic Green
Color 2	Glossy Dark Cherry

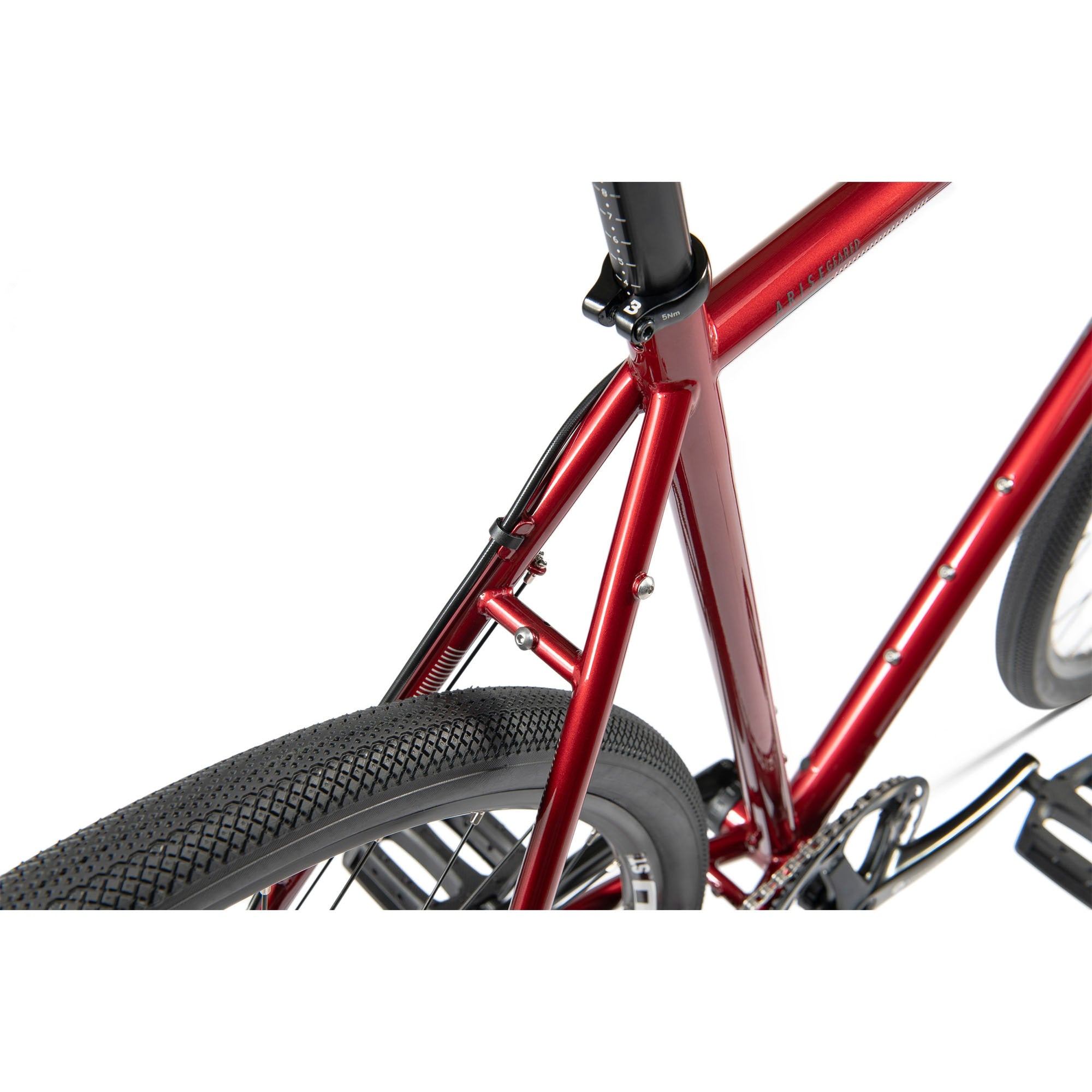

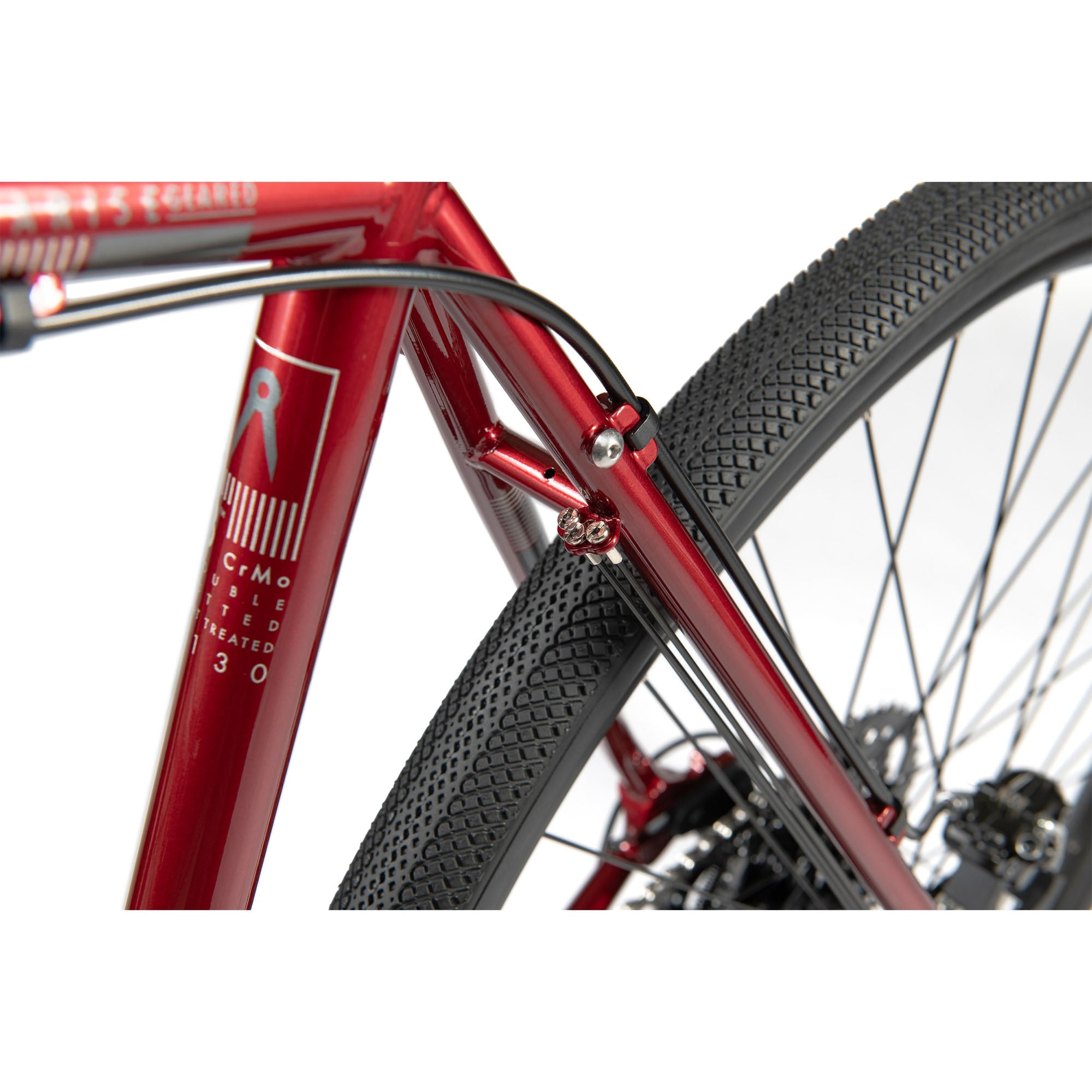

Frame	4130 double butted CrMo, heat-treated front triangle, TA sliding dropouts, rack/fender mounts, 68 mm BSA BB shell
Fork	4130 CrMo, TA, rack/fender mounts, internal hub dynamo cable routing

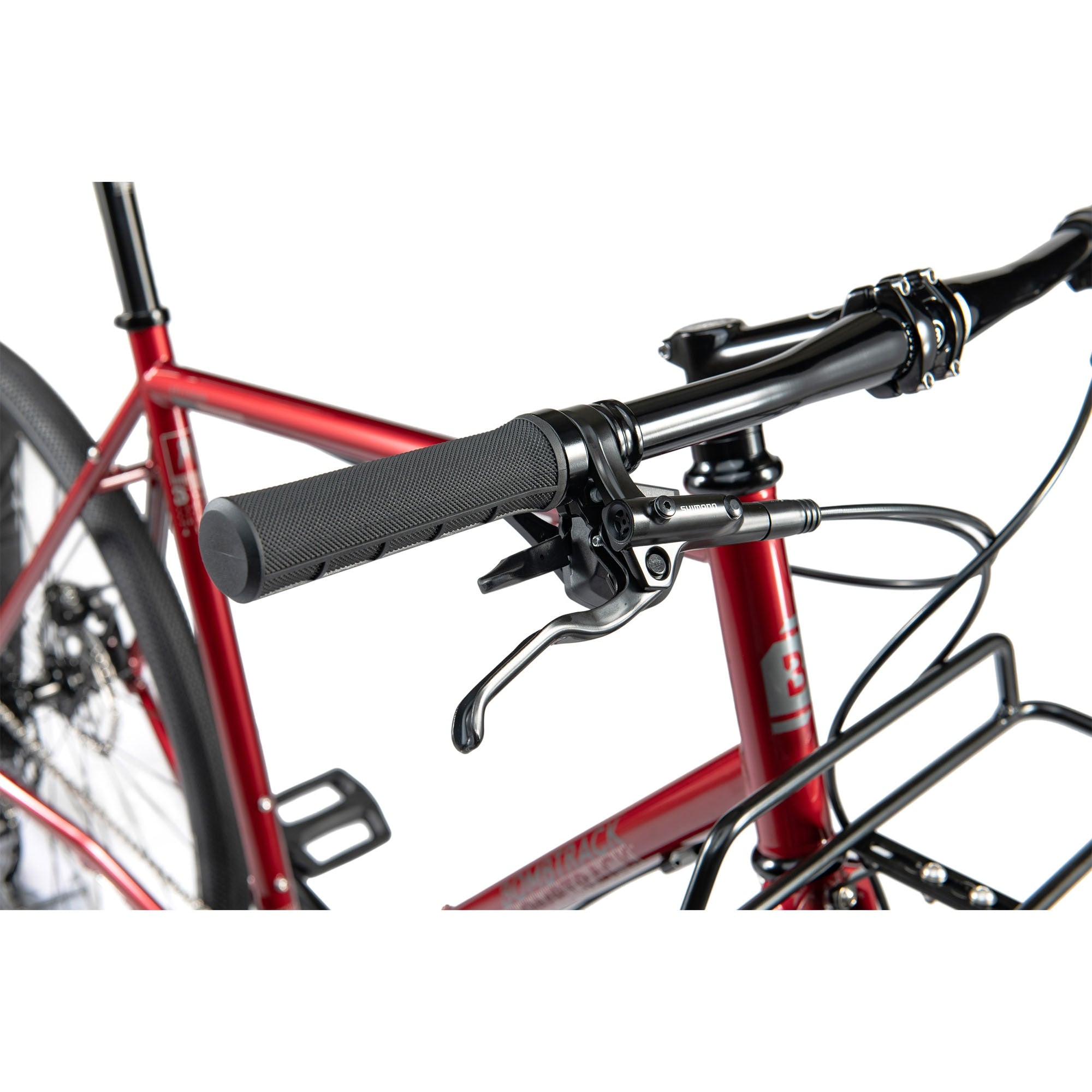

Handlebar	BOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
Grips	BOMBTRACK SCROLL grips

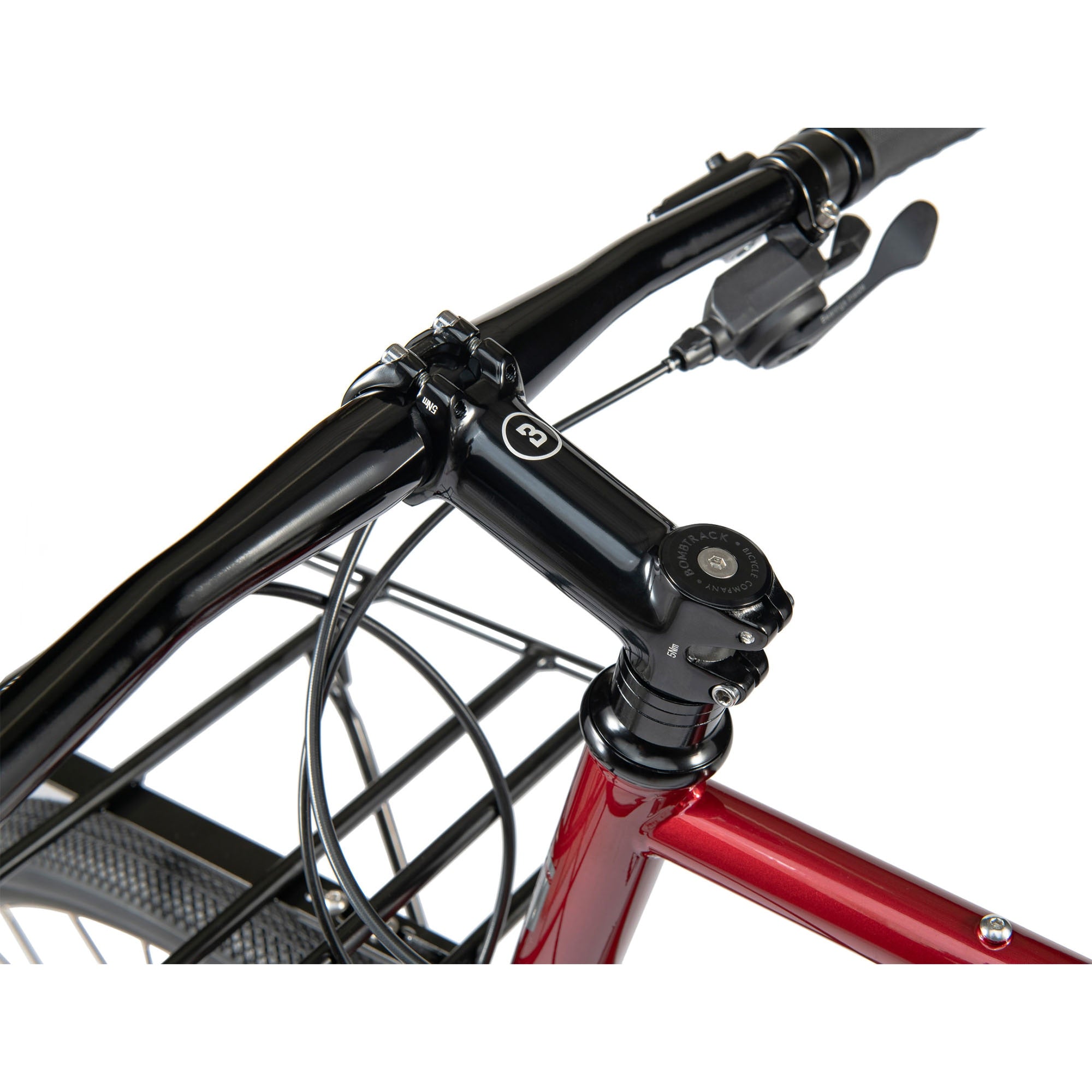

Stem	BOMBTRACK ROAM forged aluminum stem, -7°
Headset	NECO H282 sealed external headset, 1.1/8''
Levers	SHIMANO BL-M200 hydraulic brake levers
Shifter	MICROSHIFT ADVENT SL-M819-R Shifter 1 x 9

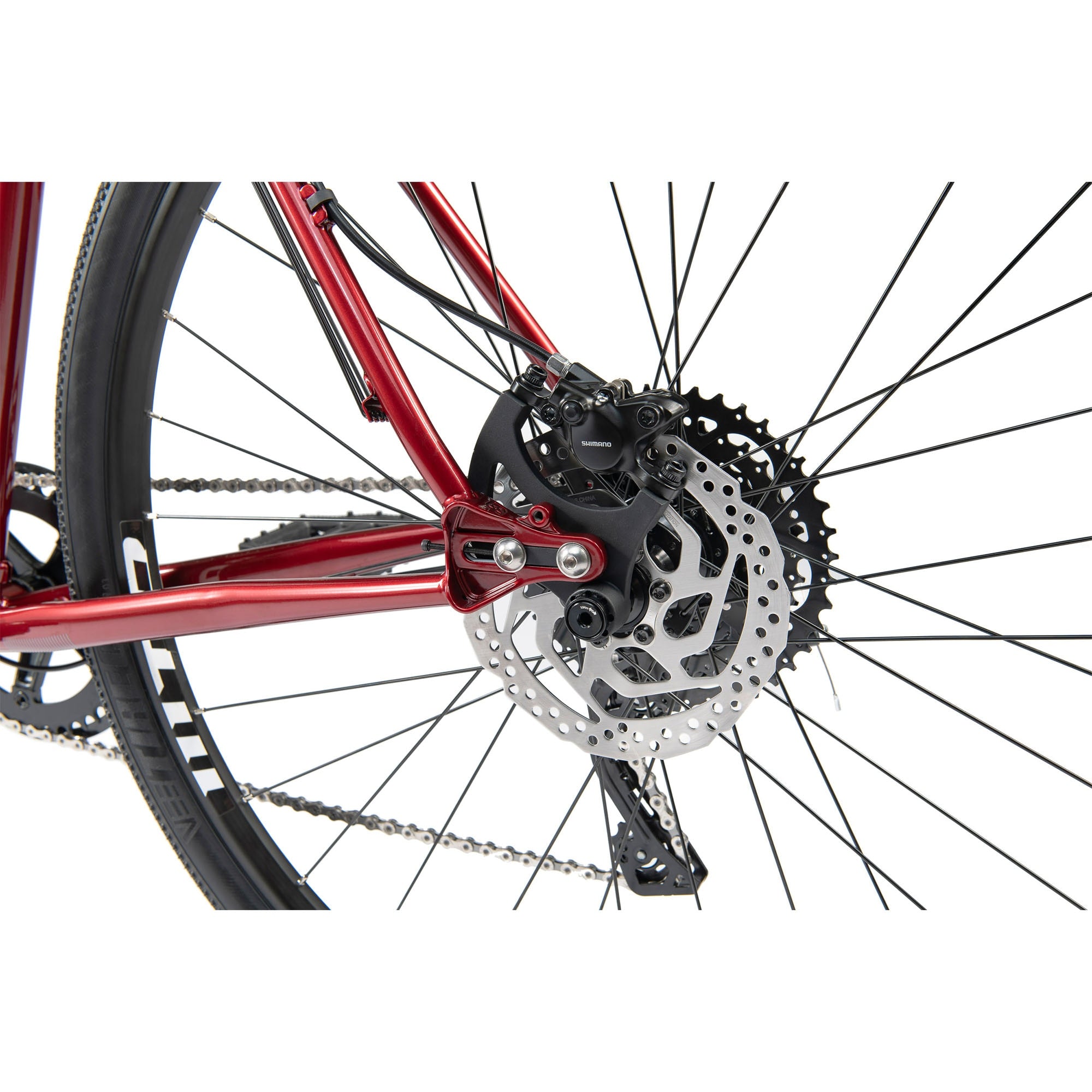

Brakes	SHIMANO BR-MT200 post-mount hydraulic disc brake with 160 mm rotors

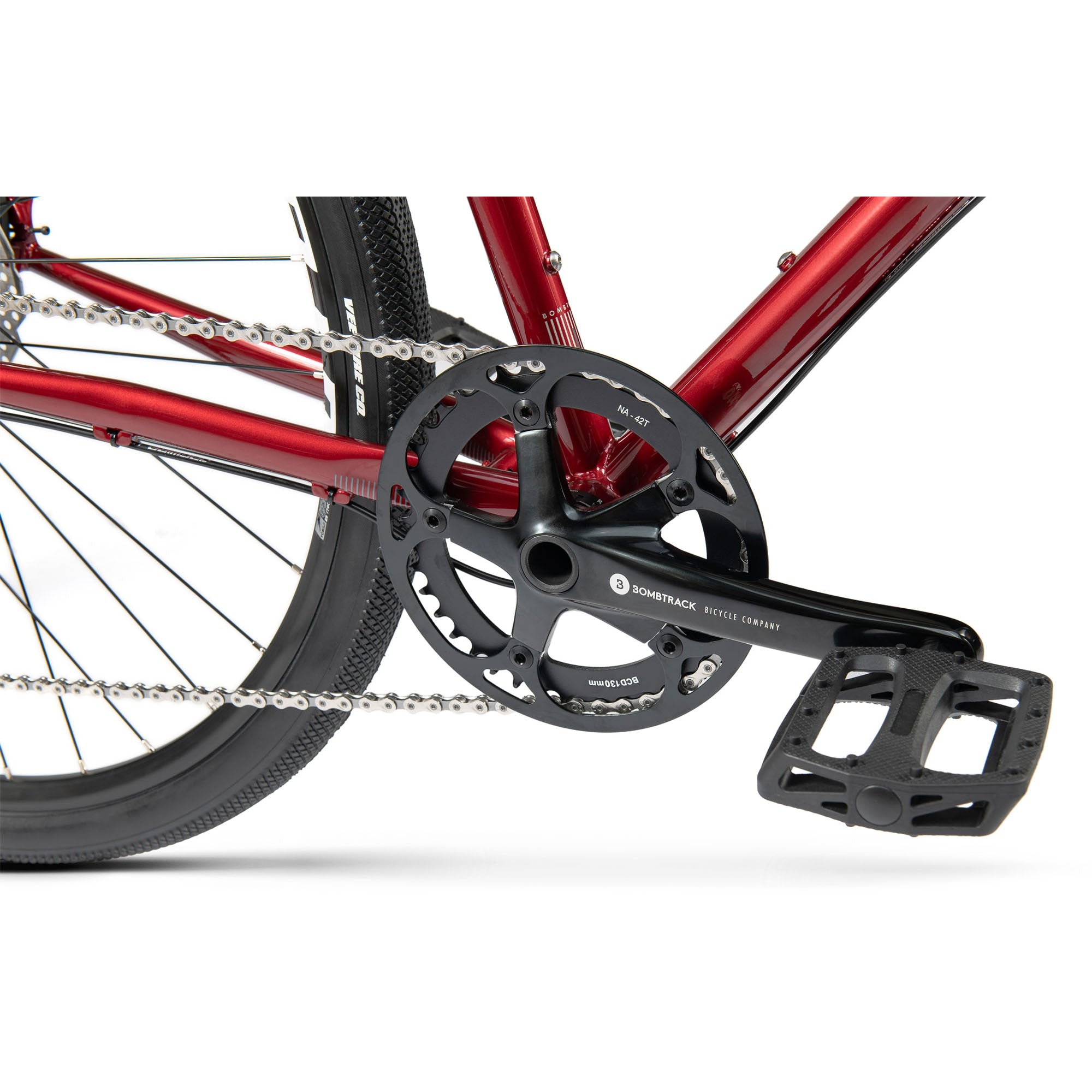

Crankset	BOMBTRACK TAF19 aluminum crank, 24 mm spindle
BB	BSA sealed BB, external cups
Pedals	WELLGO B109N flat pedal
Chain	KMC X9 chain, 1/2'' x 11/128'', 114L
Chainring	BOMBTRACK RIDGE aluminum chainring, narrow-wide, 42 T, incl. chainguard
Cassette	MICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
Front Derailleur	-
Rear Derailleur	Microshift ADVENT RD-M6195M wide range, clutch

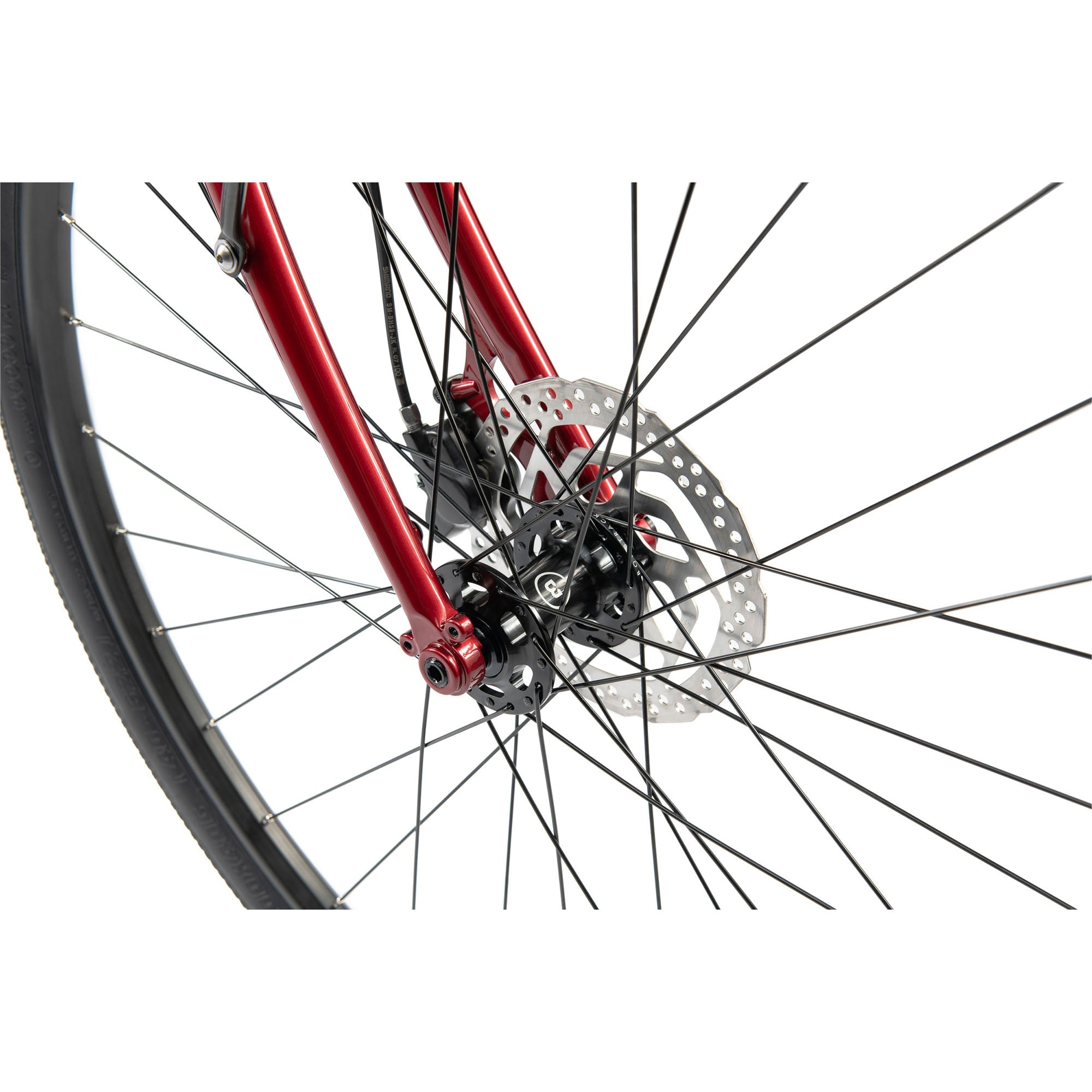

Front hub	BOMBTRACK ARC sealed hub, 6-bolt disc
Rear hub	BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	WTB ST i19 double wall, TCS 2.0, 32h
Rear rim	WTB ST i19 double wall, TCS 2.0, 32h

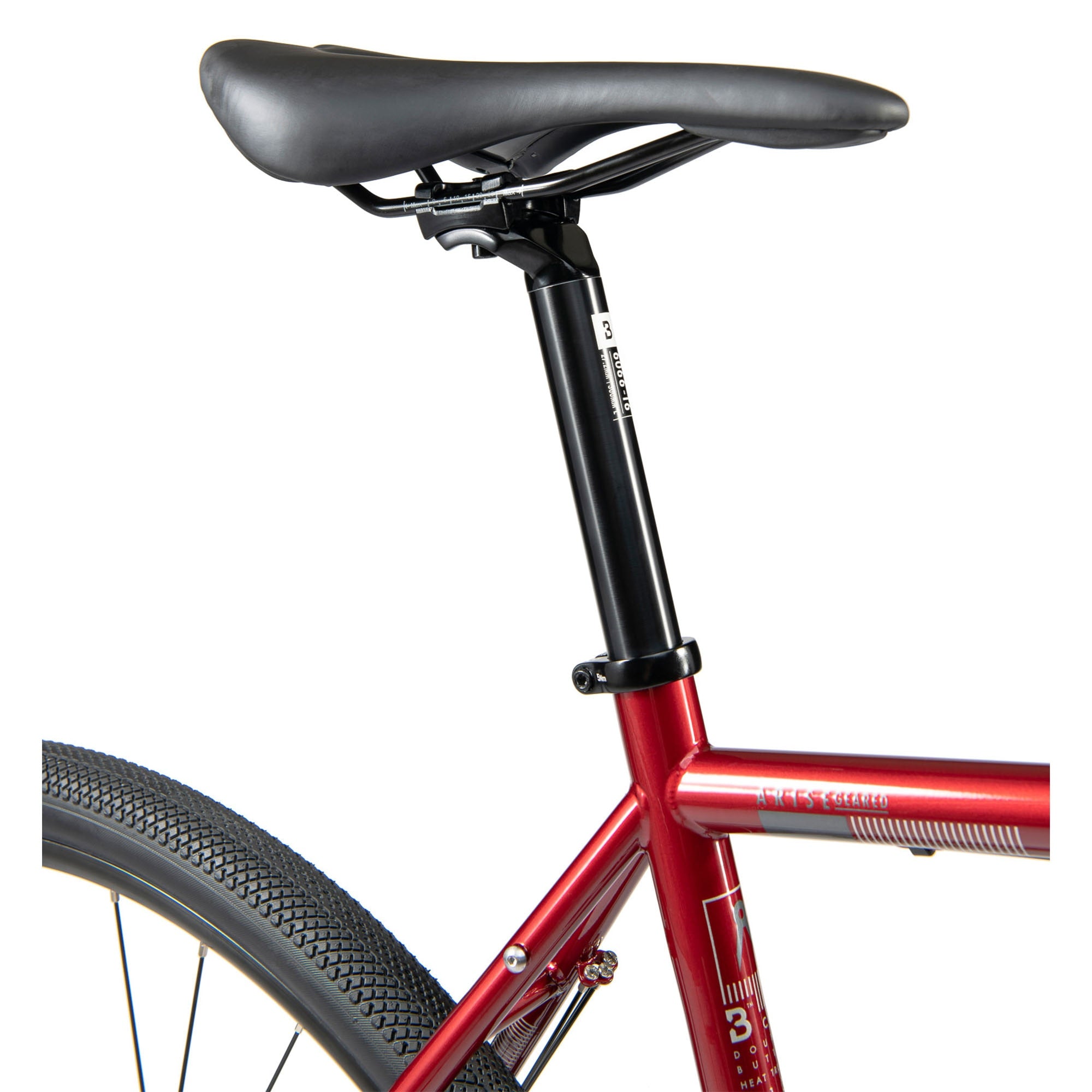

Saddle	BOMBTRACK FUZZ
Seat post	BOMBTRACK BEECH 27.2 mm x 315 mm
Seat clamp	BOMBTRACK ORIGIN forged-aluminum seat clamp, 29.8 mm
Front tire	XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
Rear tire	XS - S VEE TIRE SPEEDSTER 38-584 / M - XL VEE TIRE SPEEDSTER 40-622
Fender	-

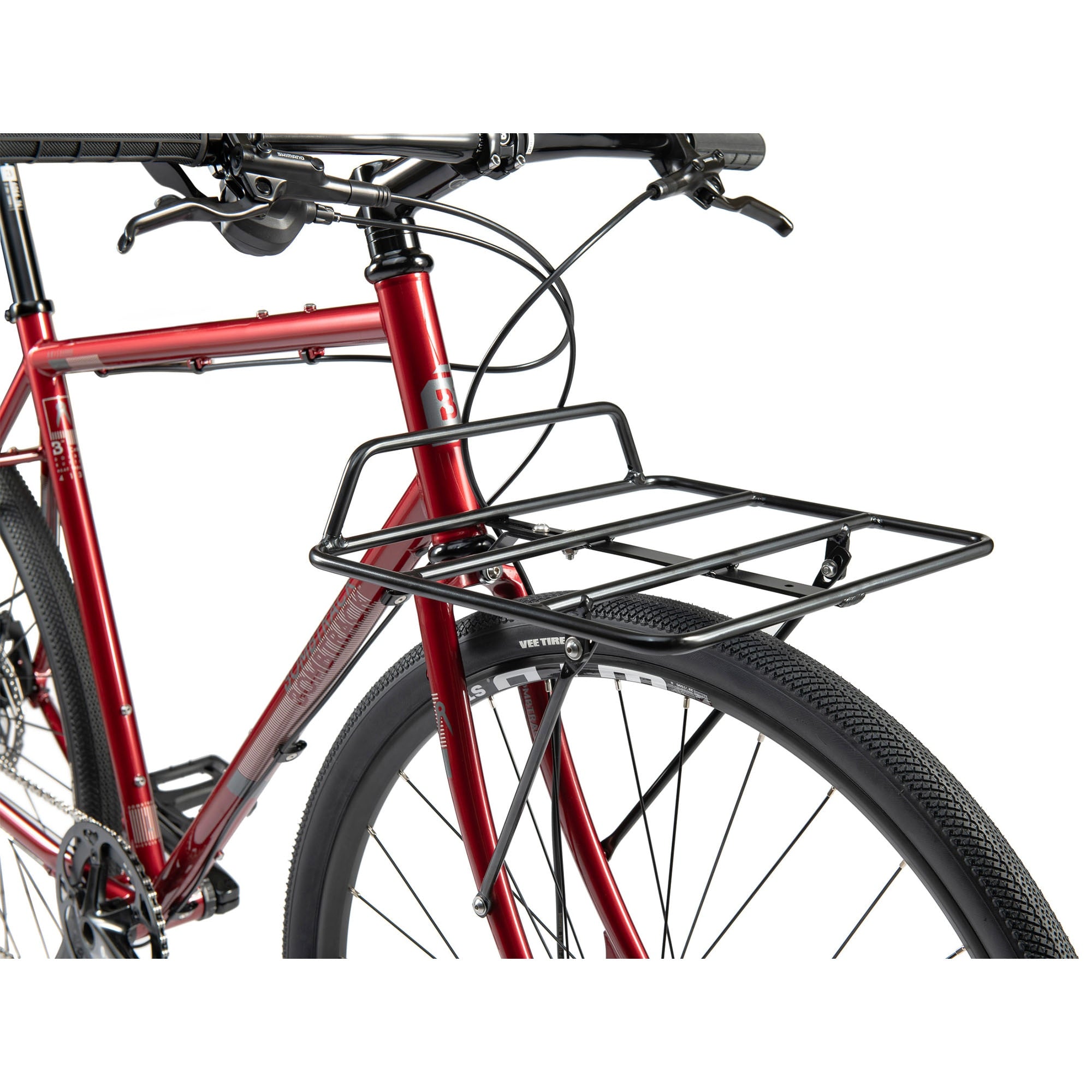

Rack	BOMBTRACK DECK front rack, aluminum
Kickstand	-
Light	-
Weight	12.6 kg (size M)
Weight frameset	2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight	120 kg incl. luggage
ASTM riding condition	2

BUILD INFORMATION

BB standard	BSA - 68 mm shell width
Headset standard (S.H.I.S.)	EC34 / 28.6 \| EC34 / 30
Headset crown race angle	45°
Fork steerer inner diameter	25.4 mm
Fork max tire clearance w/o fender	XS - S 650B x 42C / M - XL 700C x 42C
Frame max tire clearance w/o fender	XS - S 650B x 42C / M - XL 700C x 42C*
Maximum chainring clearance 1x	44 T with 45 mm chain line
Maximum chainring clearance 2x	52 / 36 T with 45 mm chain line
Seat post diameter	27.2 mm
Seat clamp diameter	29.8 mm
Front derailleur clamp diameter	28.6 mm
Brake mount front	PM
Brake mount rear	PM
Maximum rotor clearance front	160 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	Road
Crankarm	XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor	170 mm
BCD crank	130 mm, 5 bolts
Chainline	45 mm
Chainring Offset	0 mm
Spoke length front wheel	XS - S 273 mm, 275 mm / M - XL 292 mm, 293 mm
Spoke length rear wheel	XS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm
Spoke count (front/rear)	32 / 32
ERD	XS - S 570 mm / M - XL 604 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance/offset	56.5 mm center to center / 6.6 mm
Rear hub flange distance/offset	51 mm center to center / 8.8 mm
Stem length	90 mm
Stem angle	-7°
Headset spacers	1 x 10 mm, 2 x 5 mm
Seat post offset	24 mm
Seat post length	315 mm
Derailleur hanger	BT-DH-022
Frame small parts	BT-CR-007
Hub end caps front	BT-HC-012
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	BT-CRP-001
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-603
