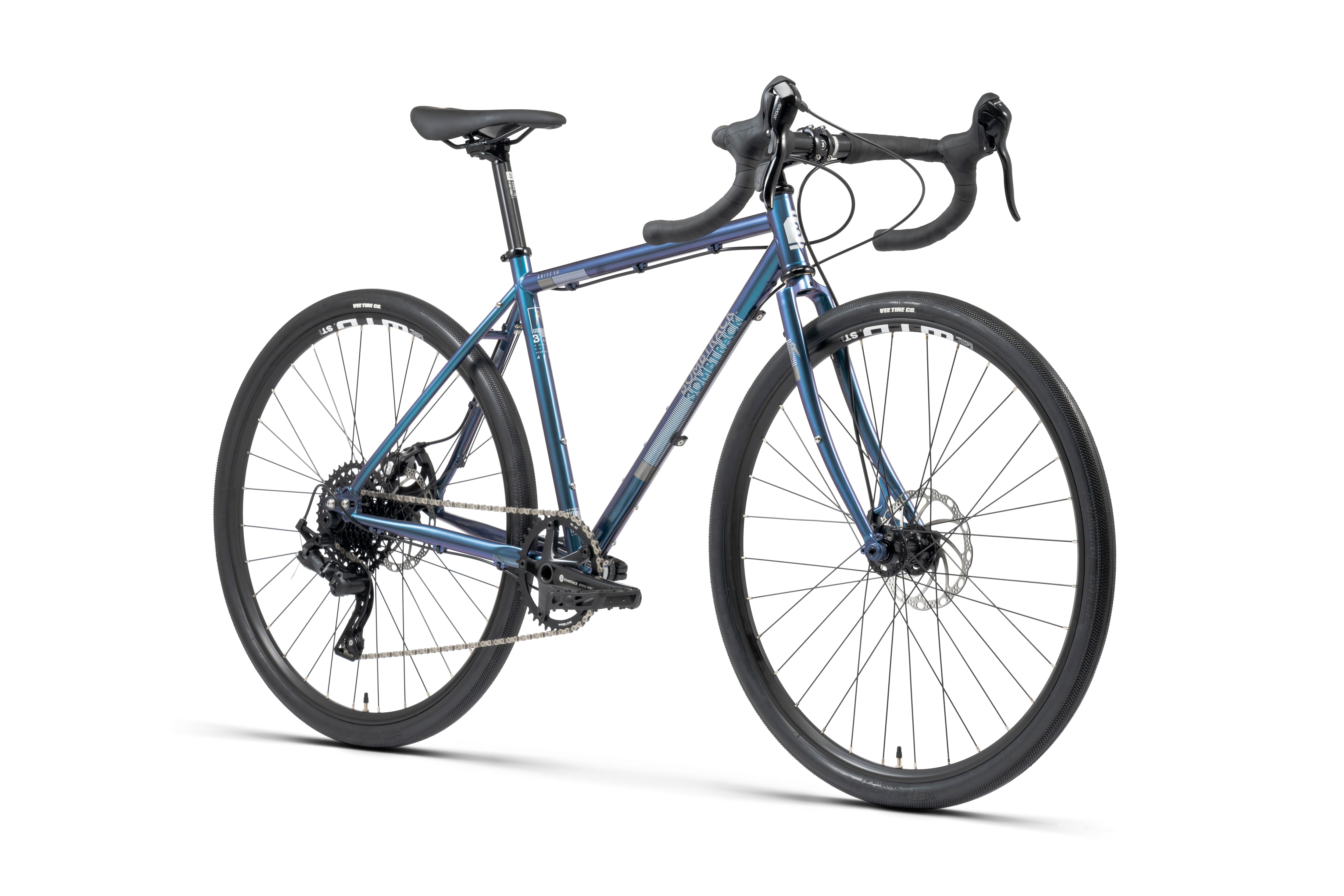

BIKE BOMBTRACK ARISE SG MICROSHIFT

SKU: BI4312

$1,149.00

$2,299.00

This bike is fitted with dropbars to give you a racier feel over its flatbar brethren, the Arise Geared. A Microshift Advent X clutched rear derailleur, and 1x drive train keeps everything stable while giving you that extra cog in the rear. Size-matched wheels ensure the perfect fit, coming fitted with 650B wheels for sizes XS and S or 700C for M and above. Sticking true to its racier nature, the Arise SG is equipped with WTB tubeless-ready wheels that are good to go if you decide to pin on a race number, whilst internal light cable routing in the fork retains the bike’s versatility.

Built with fast wheels, broad tyres, and flared bars it’s happy over multiple surfaces, and ready to take on anything from commuting to touring.

Size XS and S will come with 650B wheels to ensure proper fit without any compromises in geometry.

Color:Green

Variant

BIKE BOMBTRACK ARISE SG MICROSHIFT

$1,149.00

$2,299.00

WHEELS
Size XS and S will come with 650B wheels to ensure a proper fit without any compromises in geometry.

FRAME
Double-butted CrMo frame with sliding dropouts and internal light cable routing.

FORK
CrMo fork with internal light cable routing.

HUBS
Bombtrack ARC disc brake hubs with 12 mm through axles.

CRANK
Bombtrack TAF19 aluminum crank with 24 mm spindle.

COCKPIT
New Microshift Advent X 1x10 dropbar dual control levers.

DERAILLEUR
Microshift Advent X clutched rear derailleur with wide range 10-speed 11-48 T cassette.

SPECIFICATIONS
Color 1   Glossy Cobalt Green
Color 2   -
Frame   4130 double butted CrMo, heat treated front triangle, TA sliding dropouts, rack/fender mounts, 68 mm BSA BB shell
Fork   4130 CrMo, TA, rack/fender mounts, internal hub dynamo cable routing
Handlebar   BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Grips   BOMBTRACK COMMAND bar tape
Stem   BOMBTRACK ROAM forged aluminum stem, -7°
Headset   NECO H282 sealed external headset, 1.1/8''
Levers   MICROSHIFT ADVENT X SB-M100dual control lever mechanic
Shifter   MICROSHIFT ADVENT X SB-M100 dual control lever 1 x 10
Brakes   TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Crankset   BOMBTRACK TAF19 aluminum crank, 24 mm spindle
BB   BSA sealed BB, external cups
Pedals   WELLGO B109N flat pedal
Chain   KMC X10 chain, 1/2'' x 11/128'', 114L
Chainring   BOMBTRACK RIDGE aluminium chainring, narrow-wide, 40 T
Cassette   MICROSHIFT ADVENT X CS-H104 10-speed, 11 - 48 T
Front Derailleur   -
Rear derailleur   Microshift ADVENT RD-M6205GM wide range, clutch
Front hub   BOMBTRACK ARC sealed hub, 6-bolt disc
Rear hub   BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle   12 x 100 mm / 12 x 142 mm
Front rim   WTB ST i19 double wall, TCS 2.0, 32h
Rear rim   WTB ST i19 double wall, TCS 2.0, 32h
Saddle   BOMBTRACK FUZZ
Seat post   BOMBTRACK BEECH 27.2 mm x 315 mm
Seat clamp   BOMBTRACK ORIGIN 29.8 mm
Front tire   XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Rear tire   XS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Fender   -
Rack   -
Kickstand   -
Light   -
Weight   12 kg (size M)
Weight frameset   2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight   120 kg incl. luggage
ASTM riding condition   2
BUILD INFORMATION
BB standard   BSA - 68 mm shell width
Headset standard (S.H.I.S.)   EC34 / 28.6 | EC34 / 30
Headset crown race angle   45°
Fork steerer inner diameter   25.4 mm
Fork max tire clearance w/o fender   XS - S 650B x 42C / M - XL 700C x 42C
Frame max tire clearance w/o fender   XS - S 650B x 42C / M - XL 700C x 42C*
Maximum chainring clearance 1x   44 T with 45 mm chain line
Maximum chainring clearance 2x   52 / 36 T with 45 mm chain line
Seat post diameter   27.2 mm
Seat clamp diameter   29.8 mm
Front derailleur clamp diameter   28.6 mm
Brake mount front   PM
Brake mount rear   PM
Maximum rotor clearance front   160 mm
Maximum rotor clearance rear   160 mm
Front through axle   12 mm x 100 mm, 1.5 thread pitch
Rear through axle   12 mm x 142 mm, 1.5 thread pitch
ISO testing standard   Road
Crankarm   XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor   170 mm
BCD crank   130 mm, 5 bolts
Chainline   45 mm
Chainring offset   0 mm
Spoke length front wheel   XS - S 273 mm, 275 mm / M - XL 292 mm, 293 mm
Spoke length rear wheel   XS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm
Spoke count (front / rear)   32 / 32
ERD   XS - S 570 mm / M - XL 604 mm
Front hub PCD   58 mm
Rear hub PCD   58 mm
Front hub flange distance / offset   56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset   51 mm center to center / 8.8 mm
Stem length   XS - S 80 mm / M 90 mm / L - XL 100 mm
Stem angle   -7°
Headset spacers   1 x 10 mm, 2 x 5 mm
Seat post offset   24 mm
Seat post length   315 mm
Derailleur hanger   BT-DH-022
Frame small parts   BT-CR-007
Hub end caps front   BT-HC-012
Hub end caps rear   BT-HC-017
Cassette body   BT-CB-006
Crankarm bolt   BT-CRP-001
Through axle front   BT-TA-F-603
Through axle rear   BT-TA-R-603
Max tire clearance of 650B x 47C is possible, but depending on the tire and rim combination it might be necessary to move the sliding dropout to a rearwards position or accept tire clearance of less than 6 mm between tire and frame.
