BOMBTRACK CALE

SKU: BI4292

$1,949.00

$3,599.00

Color:Teal/Cyan

Size:

Medium Extra Large Large

Variant

BOMBTRACK CALE

$1,949.00

$3,599.00

Wheels: WTB ST i29 TCS 2.0” tubeless ready rims with Maxxis Ardent 29 x 2.4” TLR tires.
Frame: Hardtail trail mountain bike based on our experience with the Beyond+ range, can be run with 27.5’’ plus wheels or standard 29’’ wheels.
Fork: RockShox Pike Select 130 mm travel suspension fork with Boost spacing, 35mm stanchions and 42 mm offset.

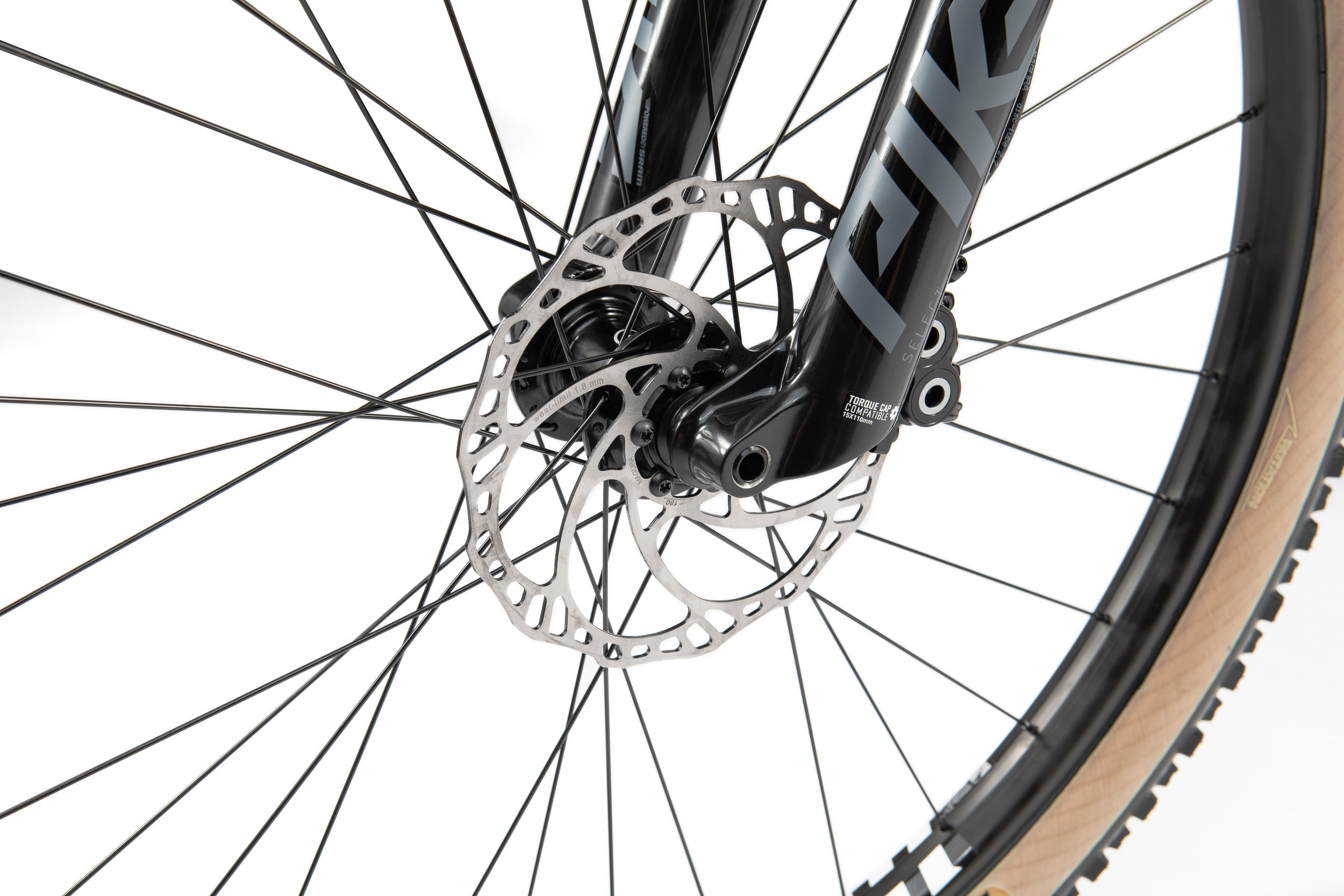

Hubs: Bombtrack Grad Boost front disc brake hub with 15 mm through axle.
Drivetrain: Sram GX Eagle 12-speed drivetrain with 10 – 52t cassette.
Disc Brakes: Magura Trail Sport hydraulic disc brake with four front pistons and two at the rear for maximum power and control.

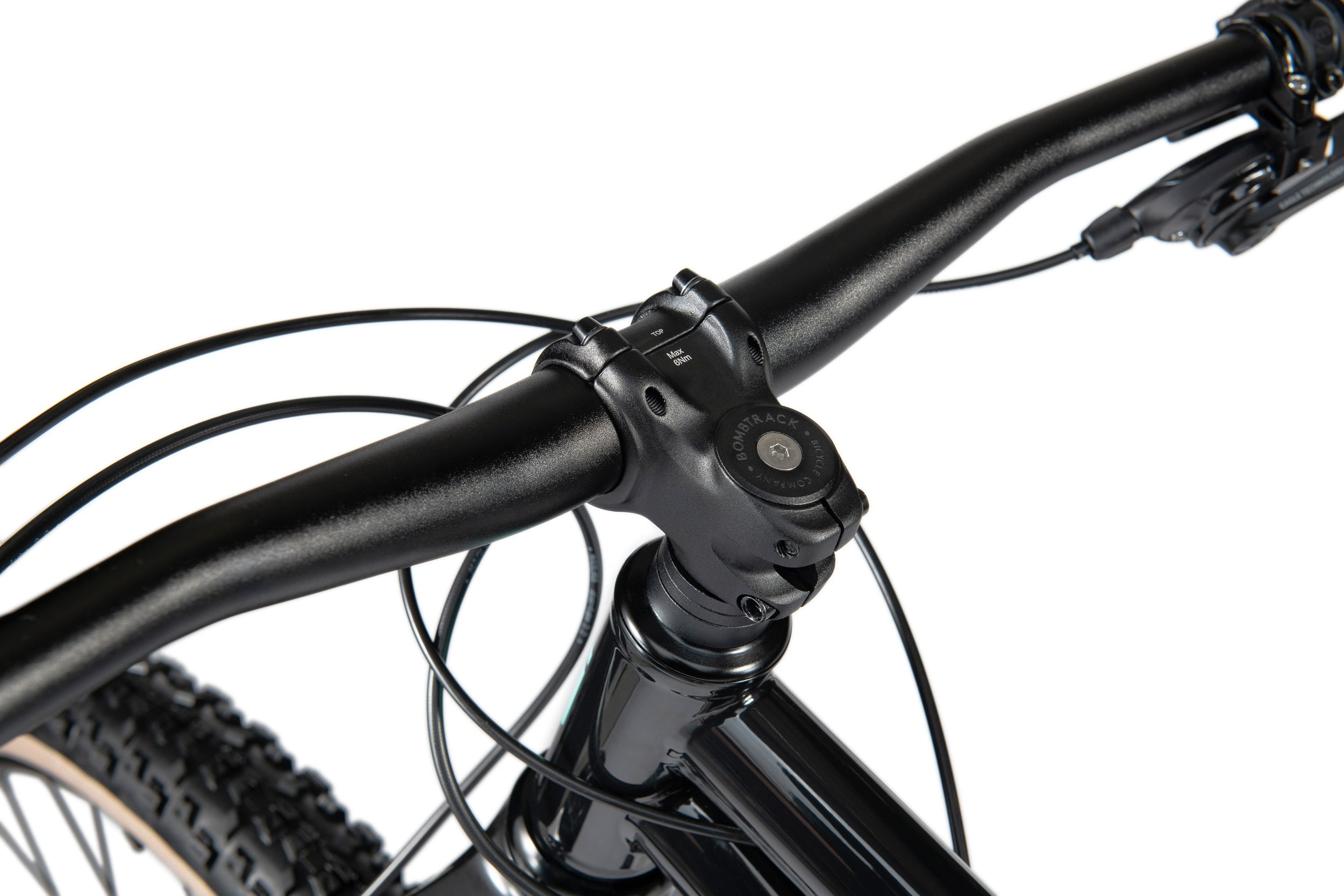

Cockpit: Bombtrack Illusion 35 mm oversized handlebar, 800 mm wide and Bombtrack Chase stem with 40 mm extension.

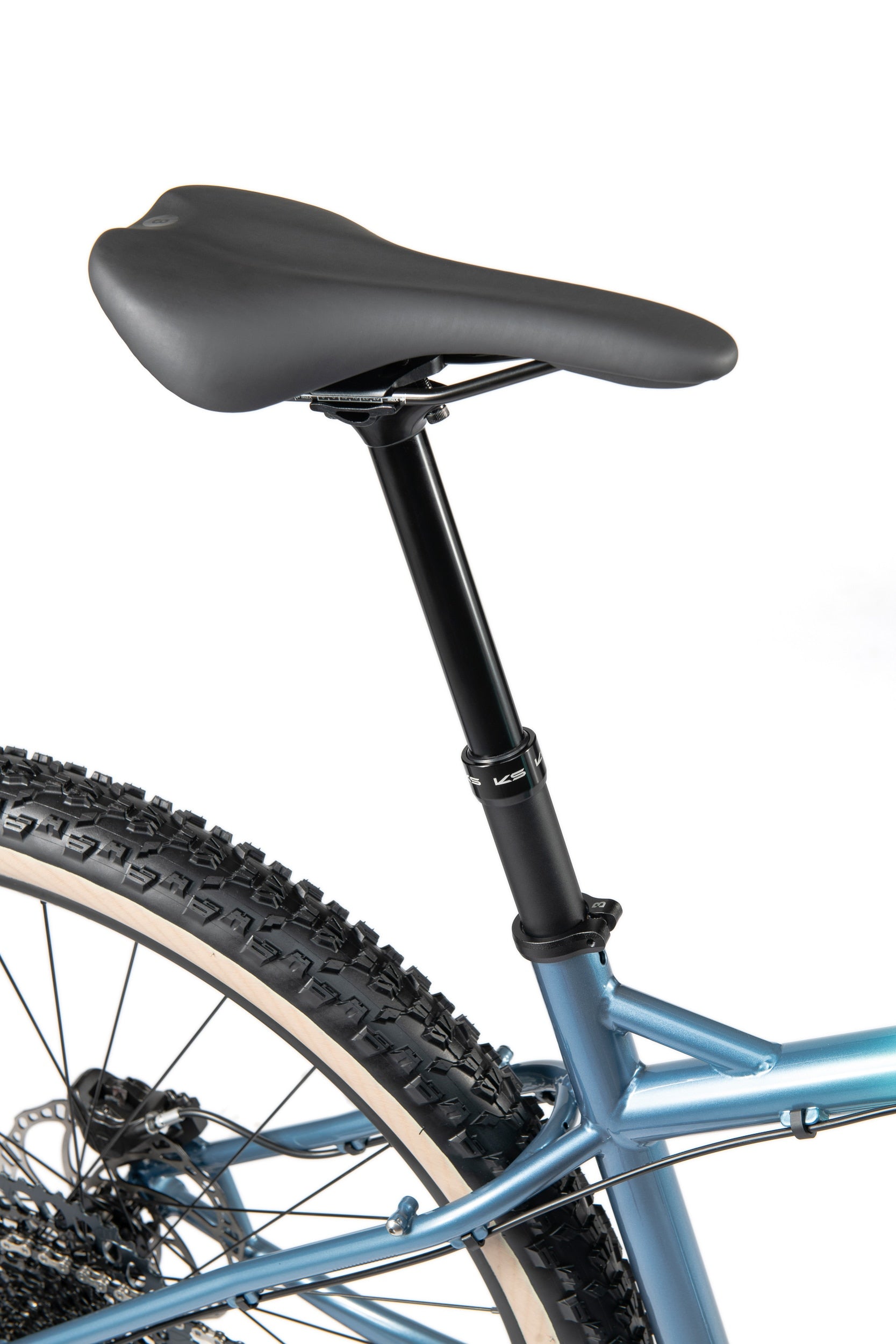

Dropper Post: KS E20i 30.9mm dropper post with 150mm travel.

SPECIFICATIONS

Color 1	Glossy Dark Teal / Cyan
Color 2	-
Frame	4130 double butted CrMo, TA, rack/fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Fork	ROCKSHOX PIKE SELECT suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Handlebar	BOMBTRACK ILLUSION flat bar, aluminum, 35 mm clamping diameter
Grips	BOMBTRACK RETURN 135 mm grips
Stem	BOMBTRACK CHASE forged aluminum, 35 mm clamping diameter
Headset	Sealed semi-integrated / external headset, 1.1/2'' - 1.1/8''
Levers	MAGURA TRAIL SPORT hydraulic
Shifter	SRAM GX-EAGLE 12-speed trigger shifter
Brakes	MAGURA TRAIL SPORT 4 piston front, 2 piston rear with 180 mm rotors

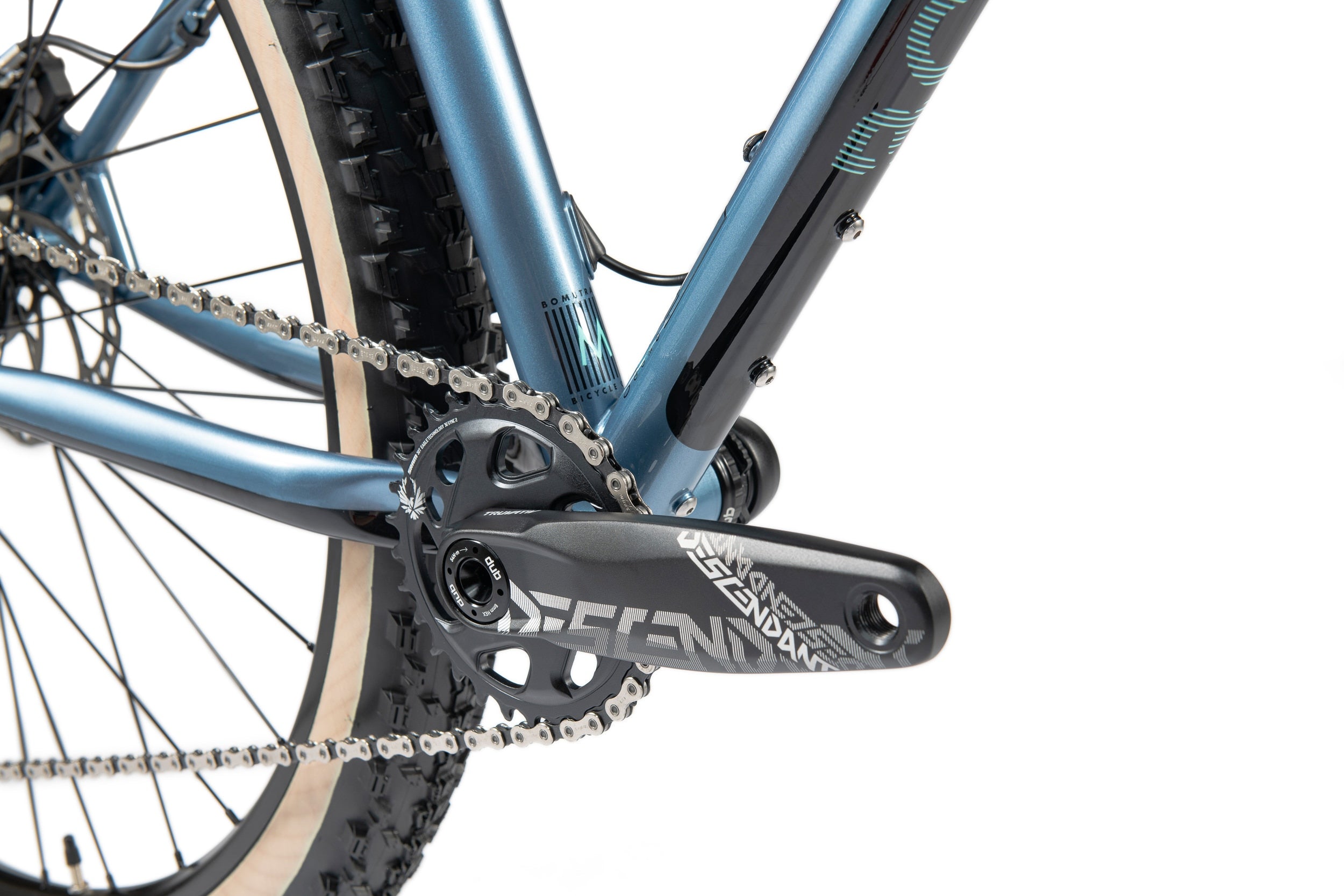

Crankset	SRAM DESCENDANT aluminum crank, Boost DUB
BB	SRAM DUB BSA 73 mm
Pedals	-
Chain	SRAM GX EAGLE chain, 1/2'' x 11/128'', 118L
Chainring	SRAM EAGLE X-SYNC 2, narrow-wide, 30 T
Cassette	SRAM XG-1275 EAGLE 12-speed, 10- 52 T
Front Derailleur	-
Rear Derailleur	SRAM GX EAGLE, clutch, long cage
Front hub	BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear hub	BOMBTRACK GON Boost sealed hub, XD driver, 6-bolt disc
Through axle	15 x 110 mm / 12 x 148 mm
Front rim	WTB ST i29 double wall, TCS 2.0, 32h
Rear rim	WTB ST i29 double wall, TCS 2.0, 32h
Saddle	BOMBTRACK FUZZ
Seat post	KS E20i dropper seatpost, 30.9 mm, 150 mm travel, 485 mm length
Seat clamp	BOMBTRACK ORIGIN forged-aluminum seat clamp, 34.9 mm
Front tire	MAXXIS ARDENT 29'' x 2.4" TLR, tubeless ready
Rear tire	MAXXIS ARDENT 29'' x 2.4" TLR, tubeless ready
Fender	-
Rack	-
Kickstand	-
Light	-
Weight	13.8 kg (size M)
Weight frameset	2910 g frame (size L, incl. TA, hanger)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	4

BUILD INFORMATION

BB standard	BSA - 73 mm shell width
Headset standard (S.H.I.S.)	ZS44 / 28.6 \| EC44 / 40
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance w/o fender	27.5'' x 2.8'' / 29'' x 2.5''
Frame max tire clearance w/o fender	27.5'' x 2.8'' / 29'' x 2.4''
Maximum chainring clearance 1x	32 T with 52 mm chain line
Maximum chainring clearance 2x	-
Seat post diameter	30.9 mm
Seat clamp diameter	34.9 mm
Front derailleur clamp diameter	34.9 mm
Brake mount front	PM
Brake mount rear	IS
Maximum rotor clearance front	220 mm
Maximum rotor clearance rear	180 mm
Front through axle	15 mm x 110 mm, 1.5 thread pitch
Rear through axle	12 mm x 148 mm, 1.5 thread pitch
ISO testing standard	MTB
Crankarm	S - M 170 mm / L - XL 175 mm
Q Factor	172 mm
BCD crank	Direct mount (Sram compatible)
Chainline	52 mm
Chainring Offset	3 mm
Spoke length front wheel	293 mm, 294 mm
Spoke length rear wheel	294 mm, 292 mm
Spoke count (front / rear)	32 / 32
ERD	606 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm / 64 mm
Front hub flange distance/offset	61.5 mm center to center / 3.4 mm
Rear hub flange distance/offset	53.4 mm center to center / 9.2 mm
Stem length	40 mm
Stem angle	0°
Headset spacers	1 x 10 mm, 2 x 5 mm
Seat post offset	0 mm
Seat post length	485 mm, 150 mm travel
Derailleur hanger	BT-DH-008
Frame small parts	BT-CR-006 / BT-CR-008
Hub end caps front	BT-HC-016
Hub end caps rear	BT-HC-019
Cassette body	BT-CB-010
Crankarm bolt	-
Through axle front	ROCKSHOX MAXLE STEALTH 15 x 110
Through axle rear	BT-TA-R-603
