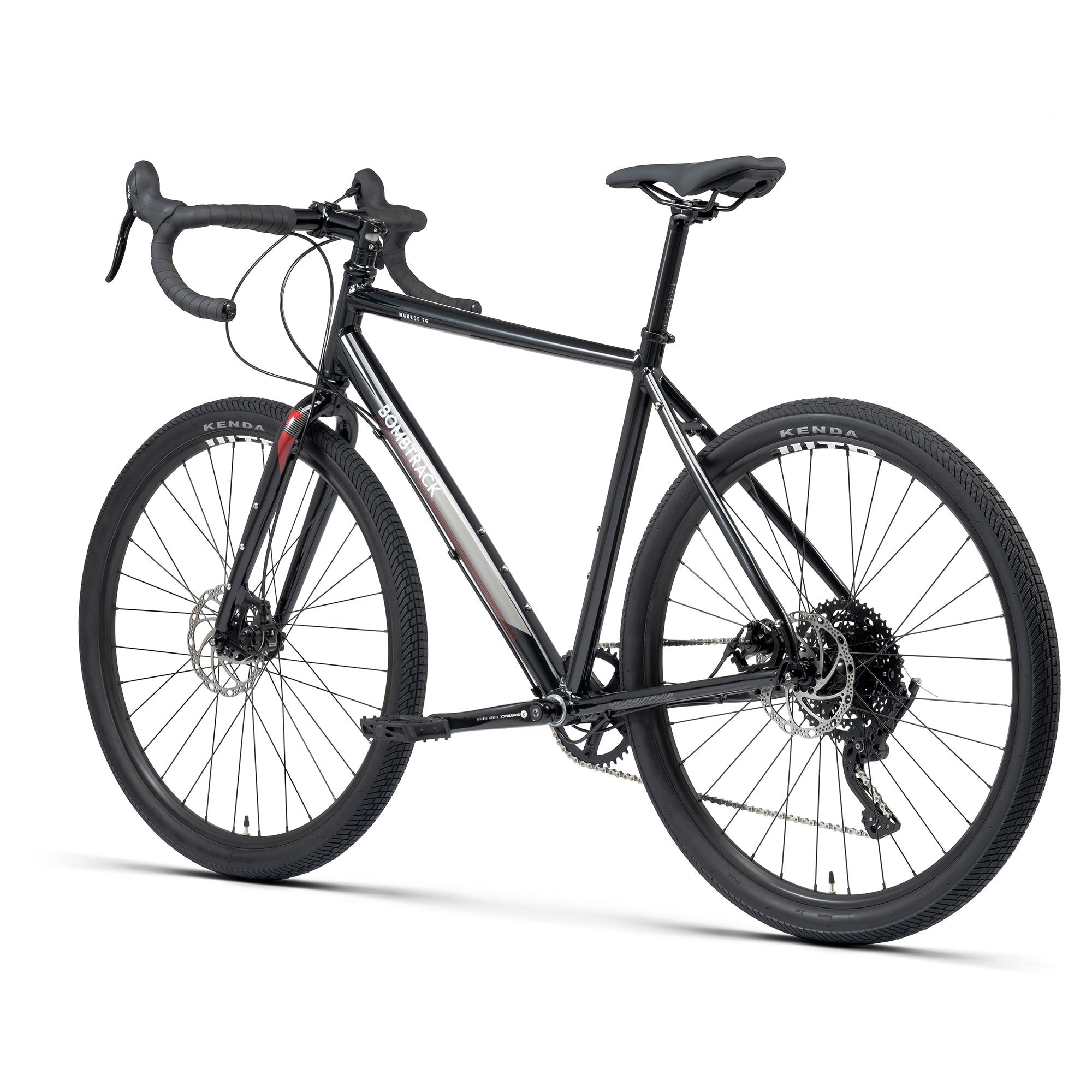

BOMBTRACK MUNROE SG BIKE
Sale price
$949.00
Regular price$1,599.00
Choose options
BOMBTRACK MUNROE SG BIKE
Sale price
$949.00
Regular price$1,599.00
SPECIFICATIONS
| Color 1 | Glossy Metallic Black / Red |
| Color 2 | - |
| Frame | 6061-T6 triple butted aluminum, QR, rack/fender mounts, 68 mm BSA shell |
| Fork | 6061 aluminum, QR dropouts, with fender/rack / triple cage mounts, internal light cable routing |

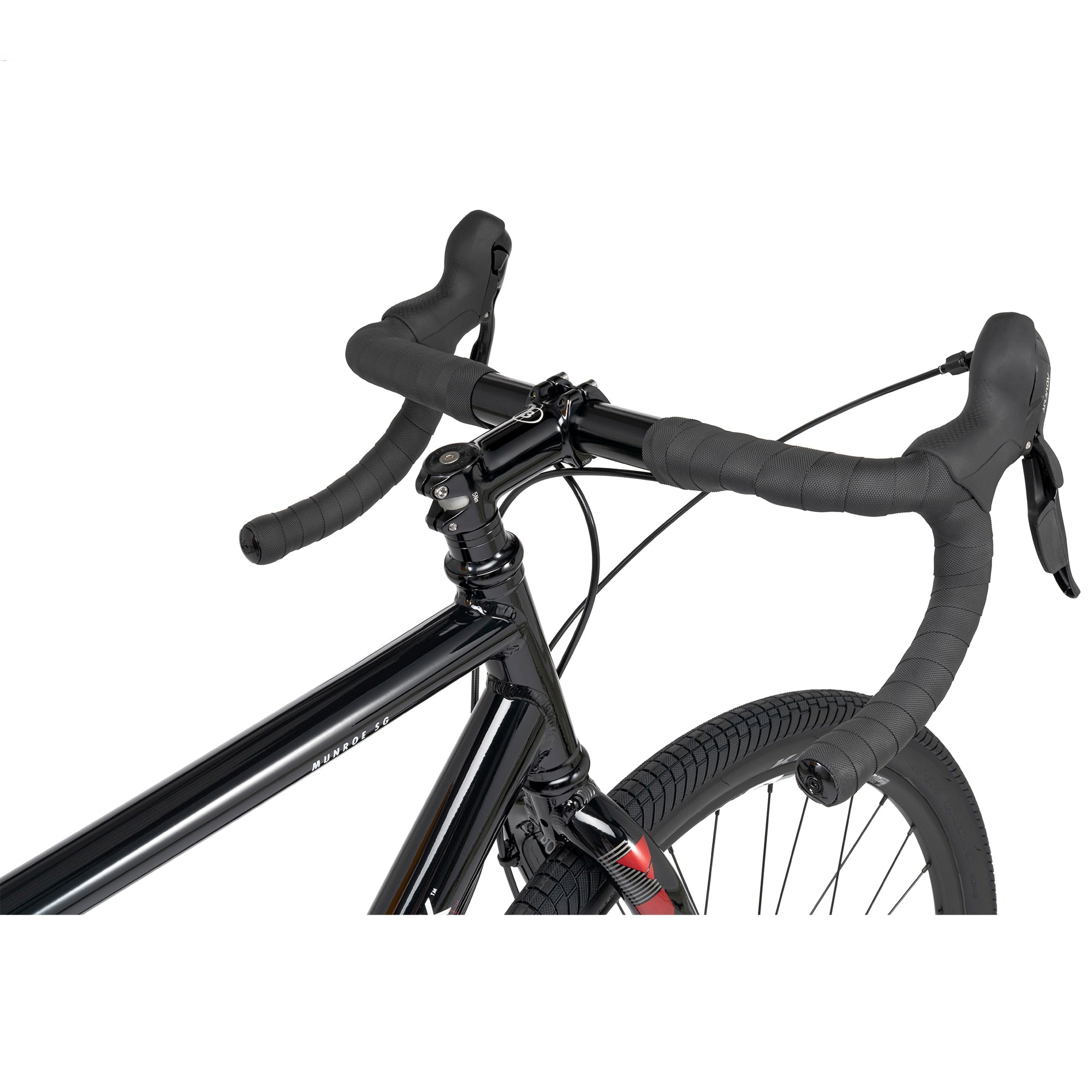

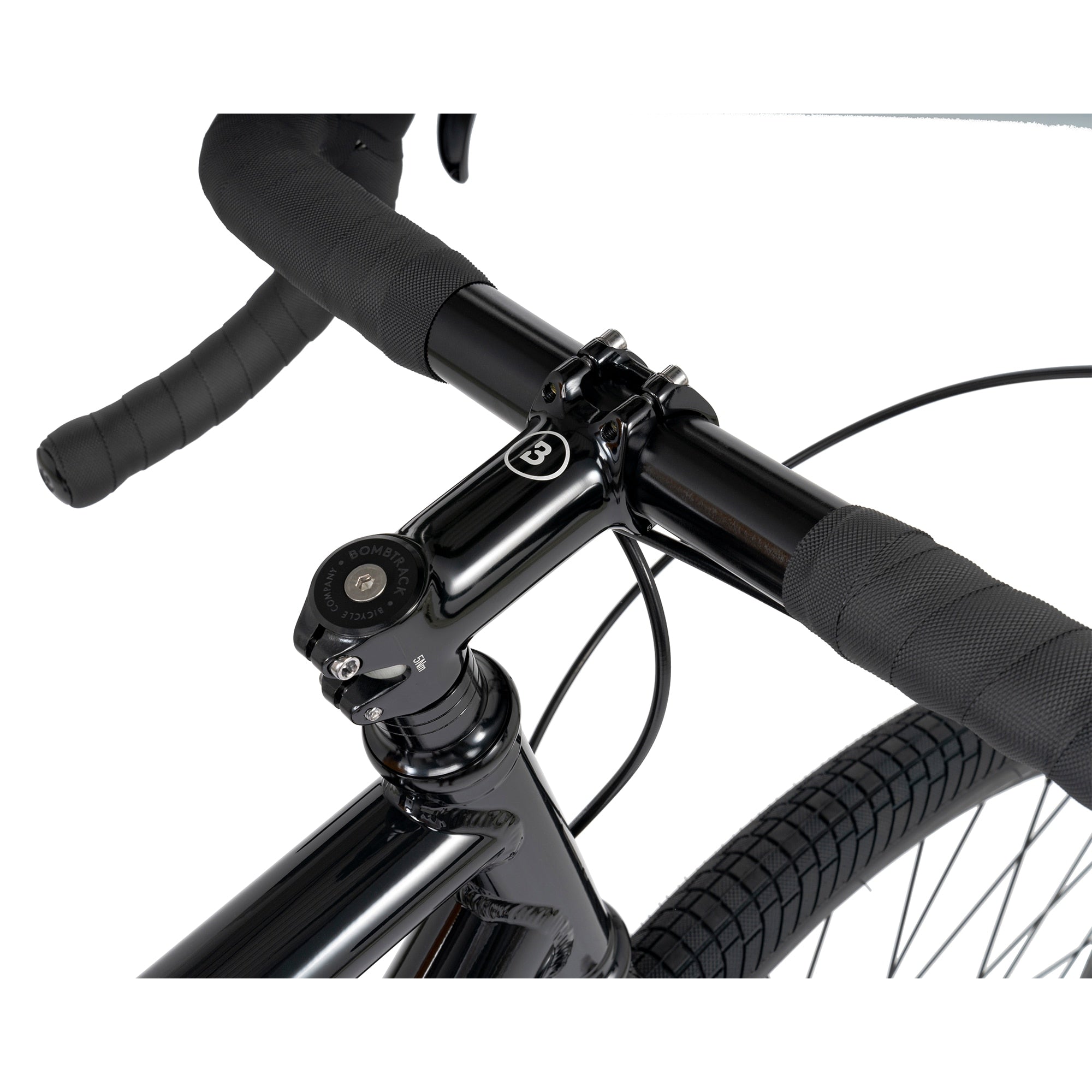

| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | BOMBTRACK COMMAND bar tape |
| Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
| Headset | NECO H282 sealed external headset, 1.1/8'' |
| Levers | MICROSHIFT ADVENT SB-M090 dual control lever mechanic |
| Shifter | MICROSHIFT ADVENT SB-M090 dual control lever 1 x 9 |

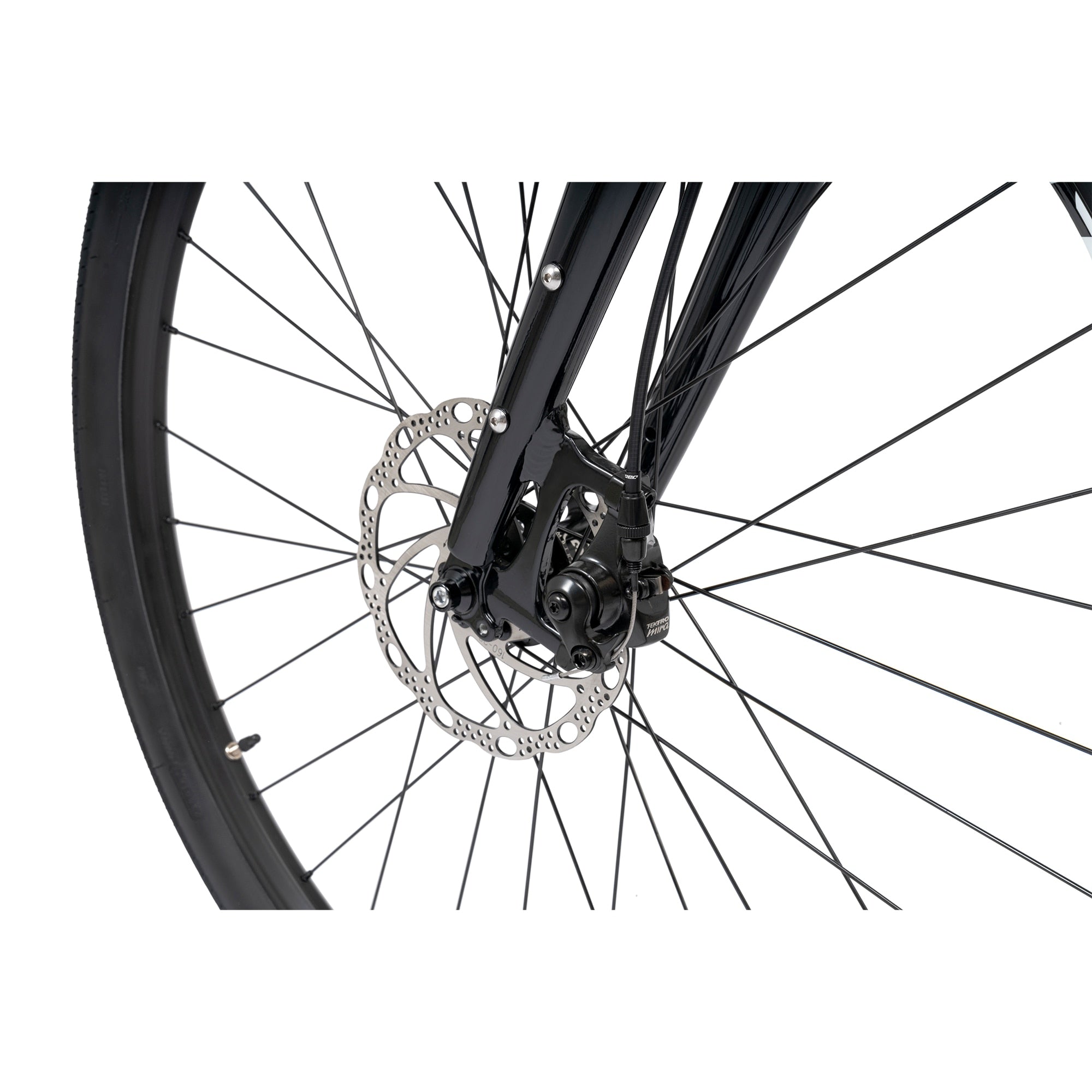

| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |

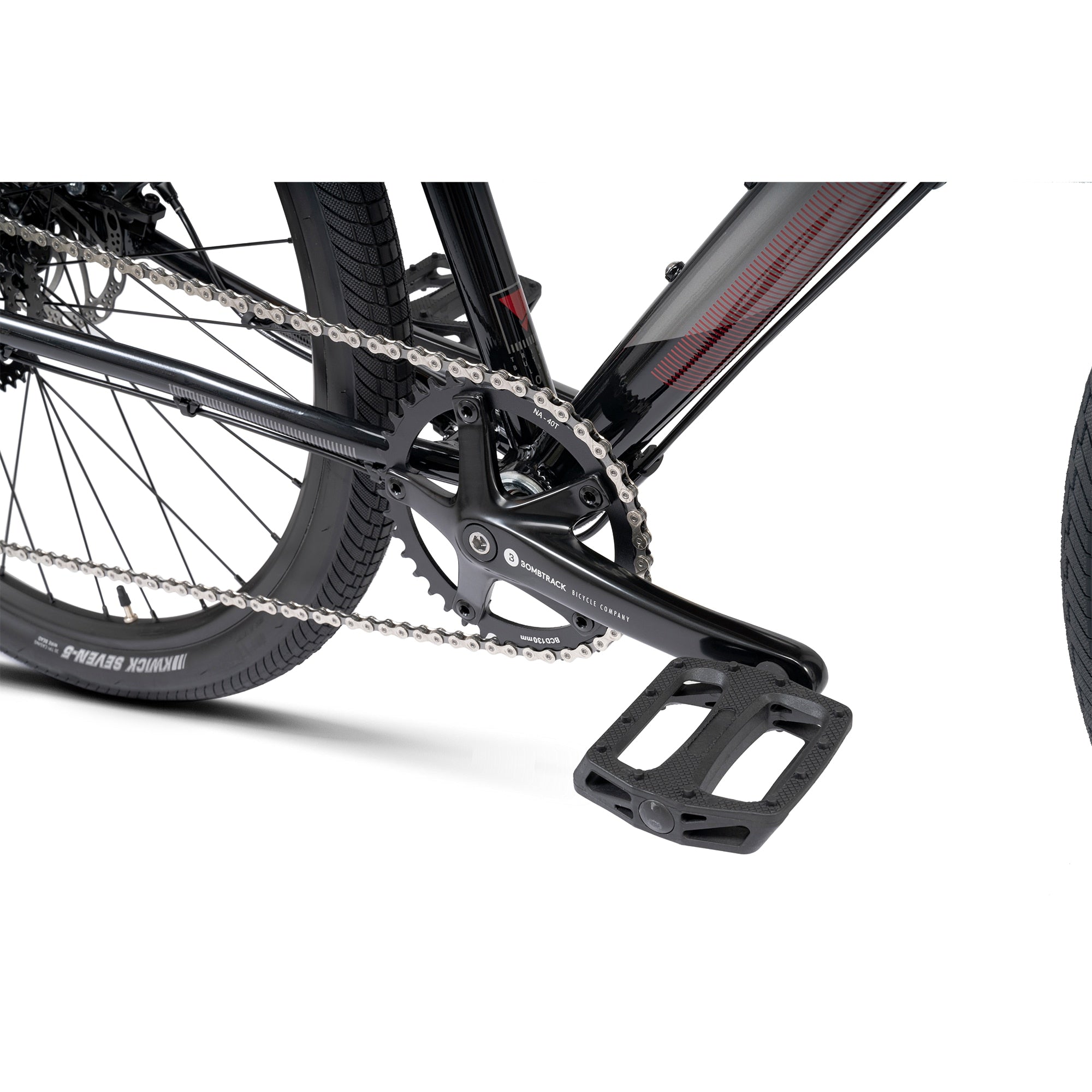

| Crankset | BOMBTRACK AF19 aluminum crank, square taper |
| BB | BSA sealed BB, 119 mm, square taper |
| Pedals | WELLGO B109N flat pedal |
| Chain | KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring | Forged steel, narrow wide, 40 T |

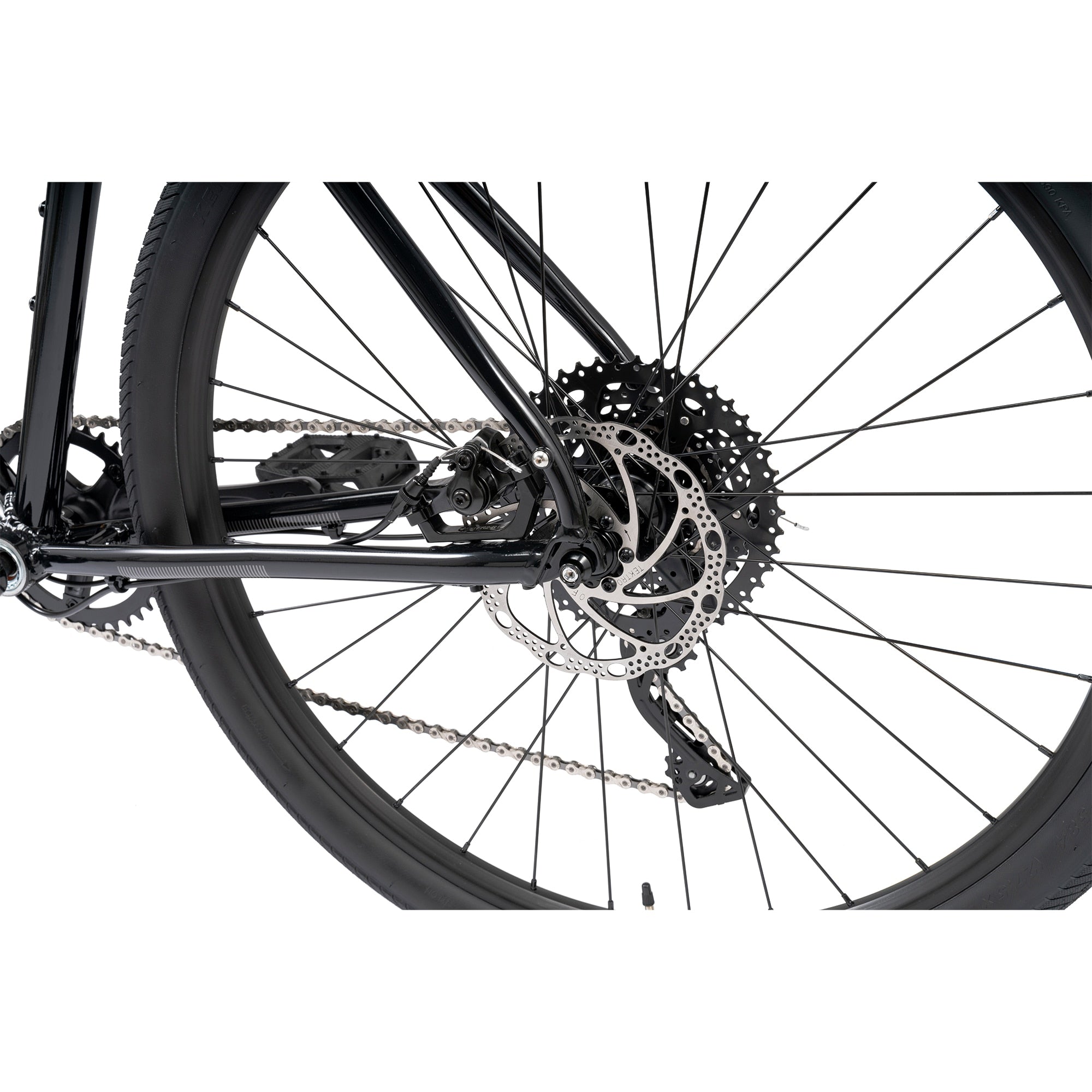

| Cassette | MICROSHIFT CS-H093 9-speed, 11 - 46 T |
| Front Derailleur | - |

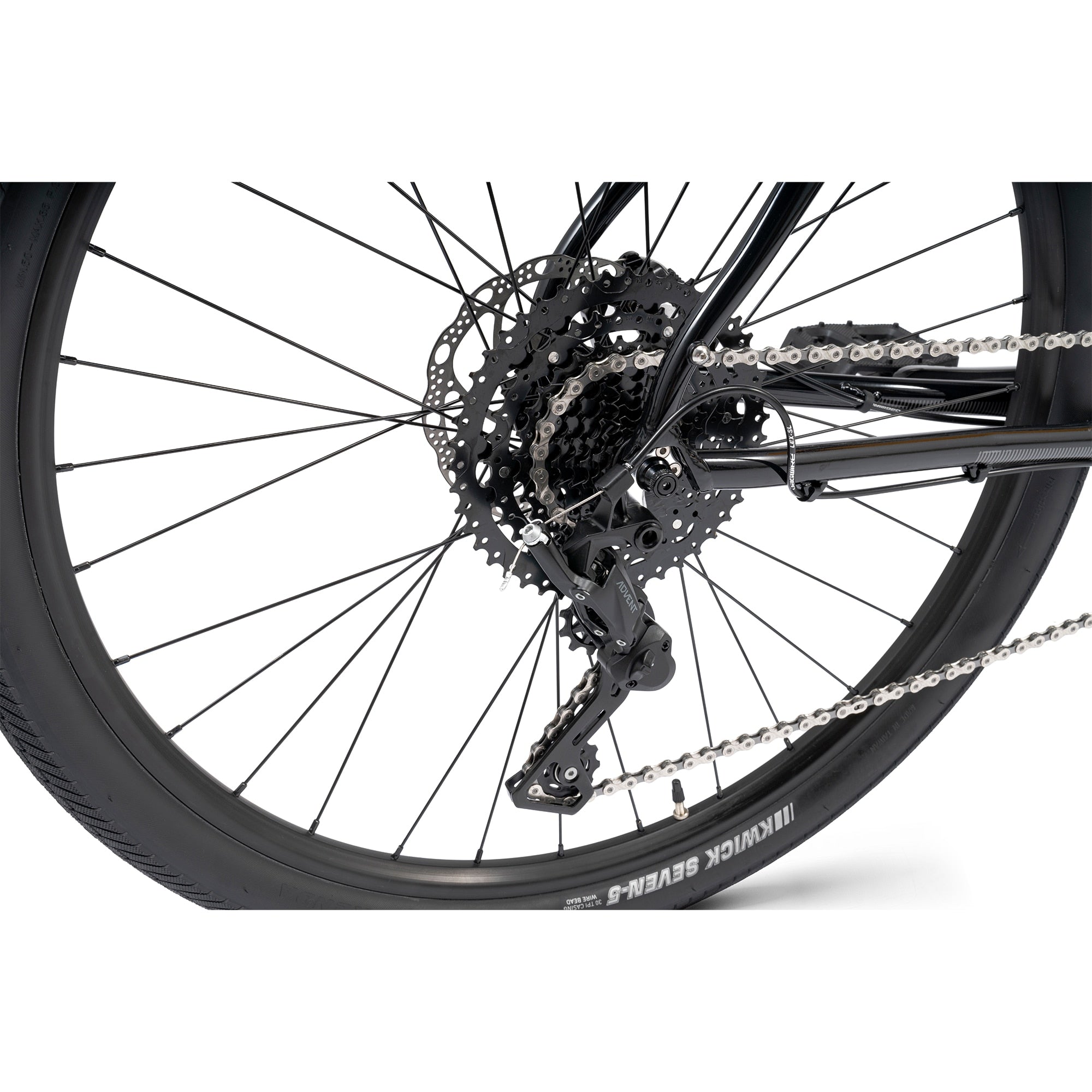

| Rear Derailleur | MICROSHIFT RD-M6195M, clutch |

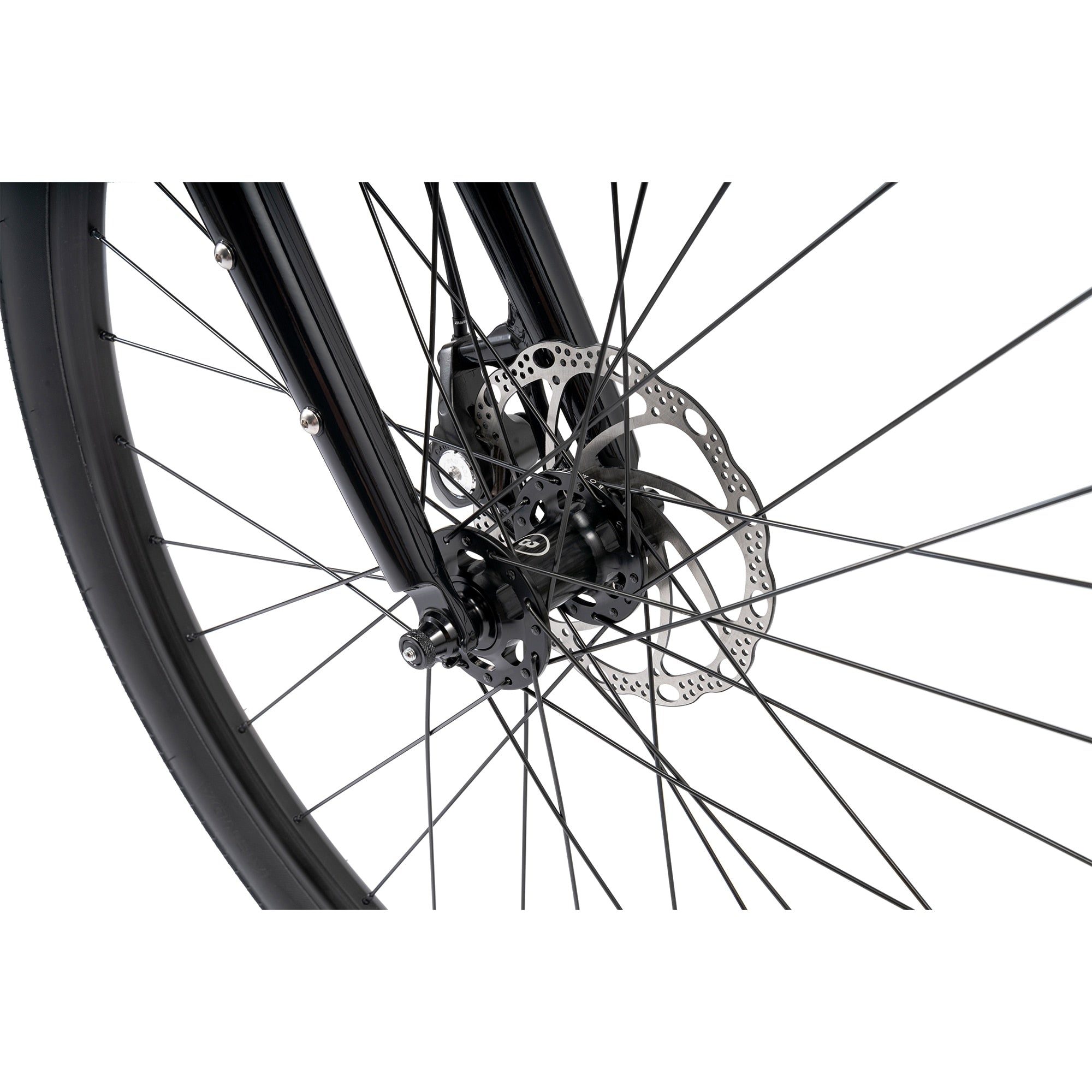

| Front hub | BOMBTRACK ARC sealed hub, 6-bolt disc, hex key skewer |
| Rear hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc, hex key skewer |
| Through axle | - |
| Front rim | WTB ST i21 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i21 double wall, TCS 2.0, 32h |

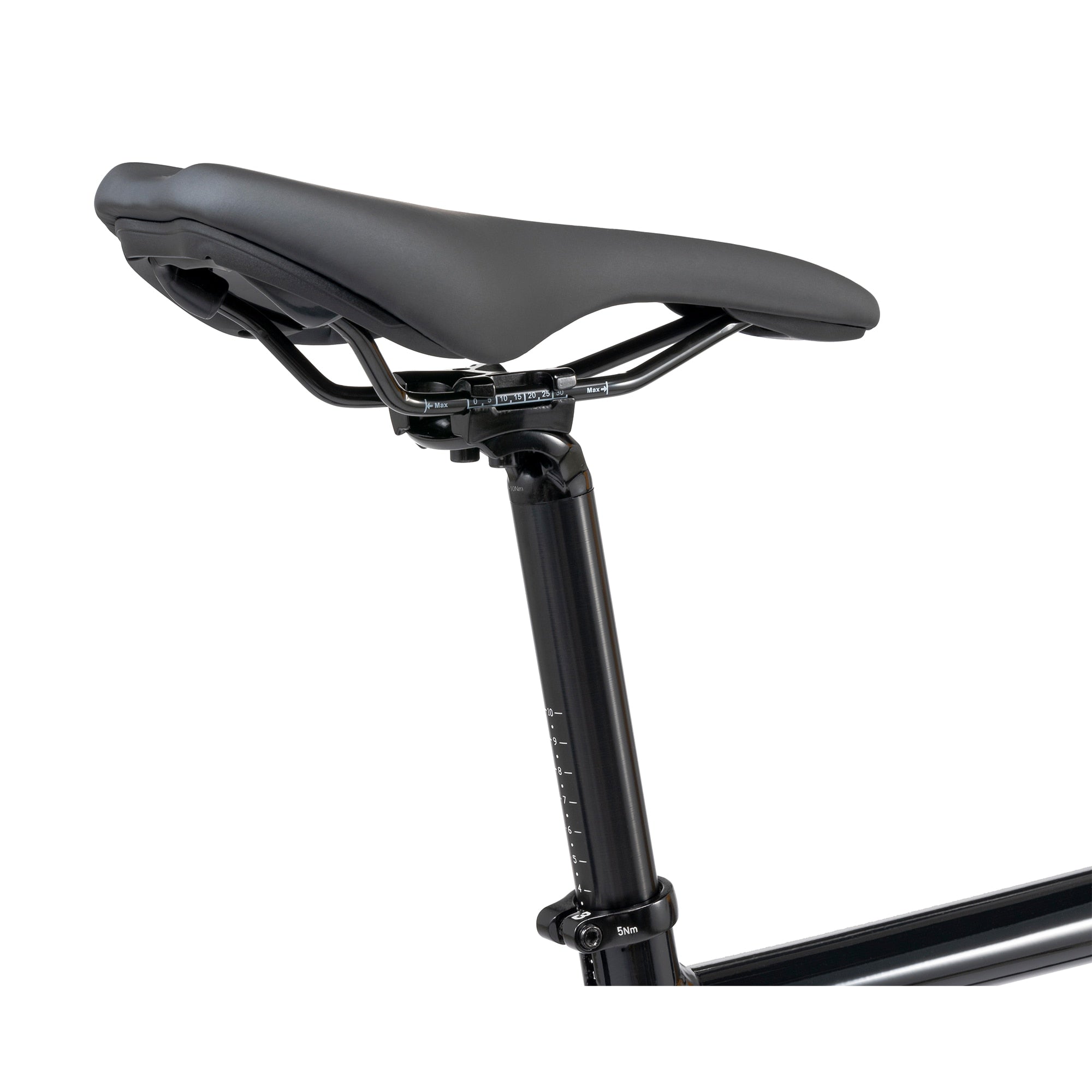

| Saddle | BOMBTRACK FUZZ |
| Seat post | BOMBTRACK BEECH 27.2 mm x 315 mm |
| Seat clamp | BOMBTRACK ORIGIN forged-aluminum seat clamp, 31.8 mm |
| Front tire | KENDA KWICK SEVEN.5 650B x 45C |
| Rear tire | KENDA KWICK SEVEN.5 650B x 45C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | TBA (size M) |
| Weight frameset | 1660 g frame (size M, incl. hanger) / 810 g fork (300 mm steerer) |
| Maximum rider weight | 110 kg incl. luggage |
| ASTM riding condition | 1 |
BUILD INFORMATION
| BB standard | BSA - 68 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 24.6 mm |
| Fork max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Frame max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Maximum chainring clearance 1x | 38 T with 45 mm chain line |
| Maximum chainring clearance 2x | 50 / 34 T with 45 mm chain line |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 31.8 mm |
| Front derailleur clamp diameter | 31.8 mm |
| Brake mount front | PM |
| Brake mount rear | FM |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | - |
| Rear through axle | - |
| ISO testing standard | Road |
| Crankarm | S - M 170 mm / L 175 mm |
| Q Factor | 170 mm |
| BCD crank | 130 mm, 5 bolts |
| Chainline | 45 mm |
| Chainring Offset | 0 mm |
| Spoke length front wheel | 273 mm, 274 mm |
| Spoke length rear wheel | 274 mm, 272 mm |
| Spoke count (front/rear) | 32 / 32 |
| ERD | 568 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance/offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance/offset | 51 mm center to center / 8.8 mm |
| Stem length | S 80 mm / M 90 mm / L - 100 mm |
| Stem angle | -7° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 24 mm |
| Seat post length | 315 mm |
| Derailleur hanger | BT-DH-019 |
| Frame small parts | BT-CR-007 |
| Hub end caps front | BT-HC-013 |
| Hub end caps rear | BT-HC-018 |
| Cassette body | BT-CB-009 |
| Crankarm bolt | - |
| Through axle front | - |
| Through axle rear | - |
THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
