CINELLI BIKE GAZZETTA DELLA STRADA CUSTOM ALIVIO

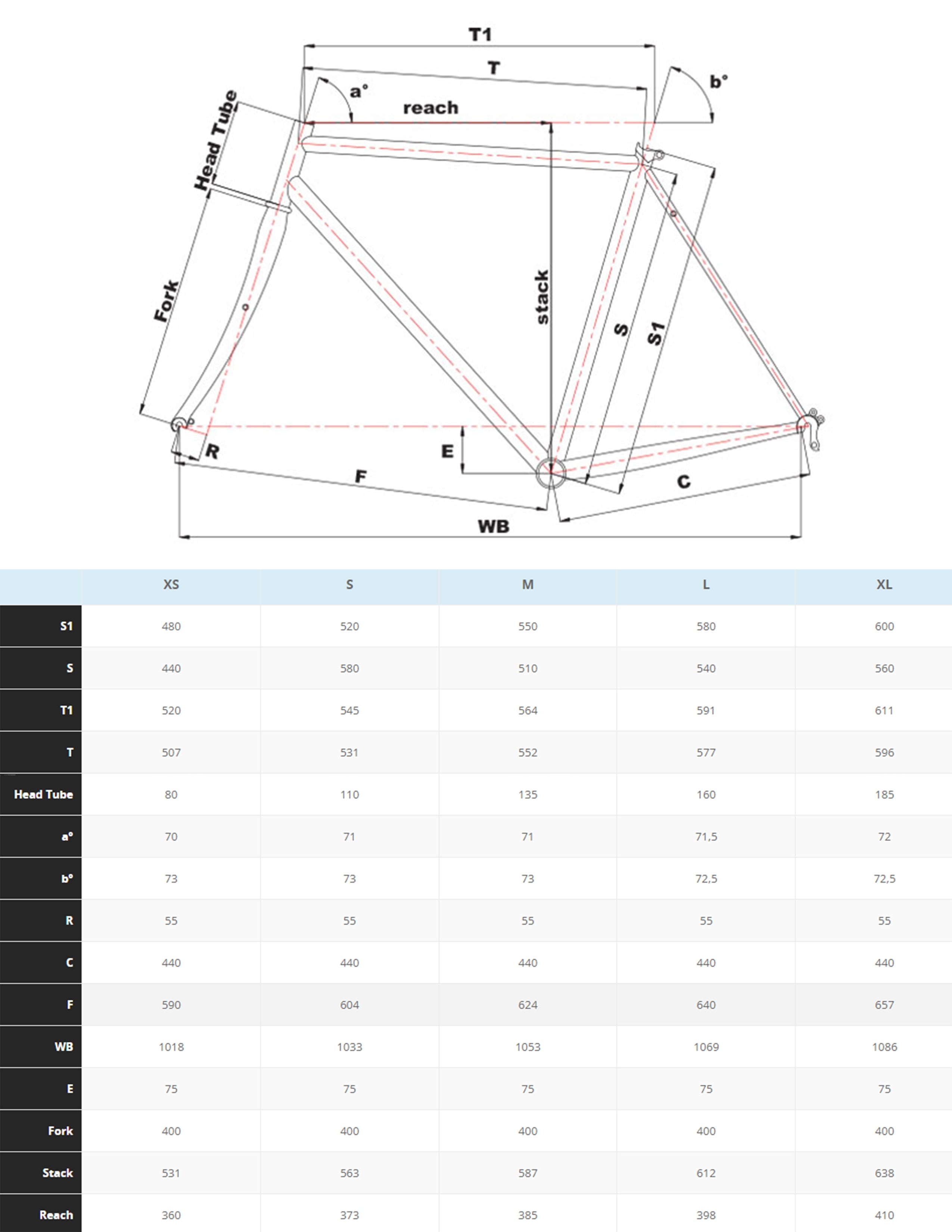

SIZES
XS (48) S (52) M (55) L (58) XL (60)
FRAME
COLUMBUS Cromor Double Butted Steel
HEADSET
EC 34/28,6 | EC 34/30
SEAT POST
Ø 27,2mm
SEAT CLAMP
Clamp-on Ø29,8mm
BB STANDARD
BSA 68mm
FT. DERAILLEUR
Clamp-on Ø28,6mm
CABLE ROUTING
External
COLOR
Black
TIRE CLEARANCE
up to 700x40 with fenders - up to 700x44 without fenders
FORK
COLUMBUS Cr-Mo Steel 1"-1/8
WEIGHT
Frame 2150g / Fork 1050g (uncut)
BRAKES STANDARD
Disc, Post mount
HUB SPACING
Front QR 100mm Rear QR 135mm
FEATURES
Front rack middle fork - rear rack eyelet / Fender eyelet
STEM
CINELLI 6061 Stem
Size 100 (XS/S) 110 (M/L/XL)
HANDLEBAR
CINELLI Flat Handlebar 6061 / Ø 31,8
Size 560 (XS/S/M/L/XL)
CRANKSET
FSA Vero Compact / 46-36T - Size 170mm (XS/S/M) 175mm (L/XL)
SEATPOST
CINELLI Seatpost 6061 / Ø27,2 / L300
TAPE
CINELLI Velo grips
BOTTOM BRACKET
FSA / BSA 68mm
FT. DERAILLEUR
SHIMANO Alivio
BRAKES
TEKTRO MD-M280 / TR160 160mm rotors
CASSETTE
SHIMANO / 9 Speed / 11-34T
REAR DERAILLEUR
SHIMANO Alivio / 9 Speed
SHIFTERS
SHIMANO Alivio
WHEELS
Shining / 700c / Formula hub
TYRES
KENDA Flintridge/ 700x35c
HEADSET
External 1-1/8"
CHAIN
KMC (X9)
SADDLE
Cinelli SSM Era custom
ACCESSORIES
Front carrier / Rear carrier eyelets / F&R Fender eyelets
2X Drivetrain

SIZES
XS (48) S (52) M (55) L (58) XL (60)
FRAME
COLUMBUS Cromor Double Butted Steel
HEADSET
EC 34/28,6 | EC 34/30
SEAT POST
Ø 27,2mm
SEAT CLAMP
Clamp-on Ø29,8mm
BB STANDARD
BSA 68mm
FT. DERAILLEUR
Clamp-on Ø28,6mm
CABLE ROUTING
External
COLOR
Black
TIRE CLEARANCE
up to 700x40 with fenders - up to 700x44 without fenders
FORK
COLUMBUS Cr-Mo Steel 1"-1/8
WEIGHT
Frame 2150g / Fork 1050g (uncut)
BRAKES STANDARD
Disc, Post mount
HUB SPACING
Front QR 100mm Rear QR 135mm
FEATURES
Front rack middle fork - rear rack eyelet / Fender eyelet

STEM
CINELLI 6061 Stem
Size 100 (XS/S) 110 (M/L/XL)
HANDLEBAR
CINELLI Flat Handlebar 6061 / Ø 31,8
Size 560 (XS/S/M/L/XL)
CRANKSET
FSA Vero Compact / 46-36T - Size 170mm (XS/S/M) 175mm (L/XL)
SEATPOST
CINELLI Seatpost 6061 / Ø27,2 / L300
TAPE
CINELLI Velo grips
BOTTOM BRACKET
FSA / BSA 68mm
FT. DERAILLEUR
SHIMANO Alivio
BRAKES
TEKTRO MD-M280 / TR160 160mm rotors
CASSETTE
SHIMANO / 9 Speed / 11-34T
REAR DERAILLEUR
SHIMANO Alivio / 9 Speed
SHIFTERS
SHIMANO Alivio
WHEELS
Shining / 700c / Formula hub
TYRES
KENDA Flintridge/ 700x35c
HEADSET
External 1-1/8"
CHAIN
KMC (X9)
SADDLE
Cinelli SSM Era custom
ACCESSORIES
Front carrier / Rear carrier eyelets / F&R Fender eyelets

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
