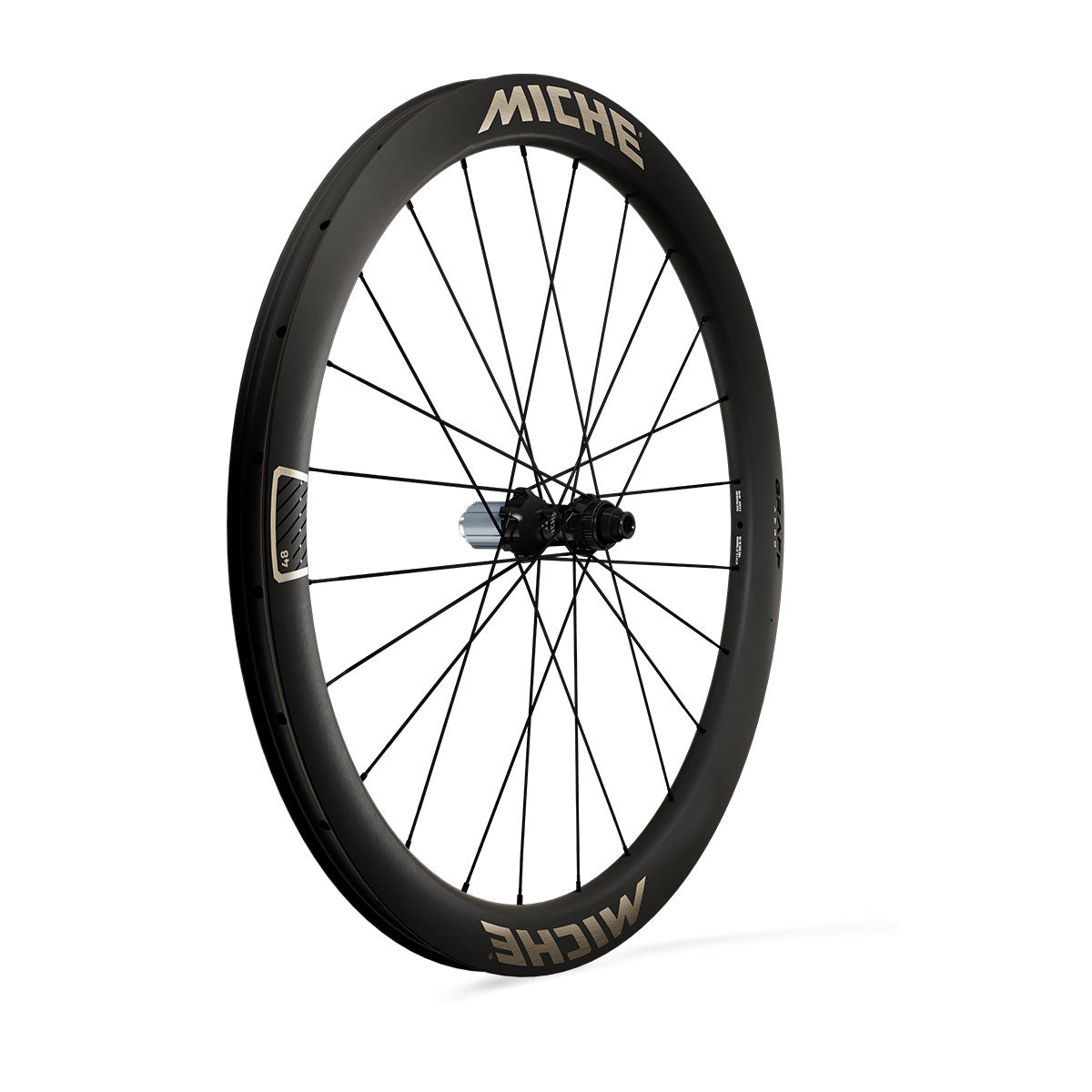

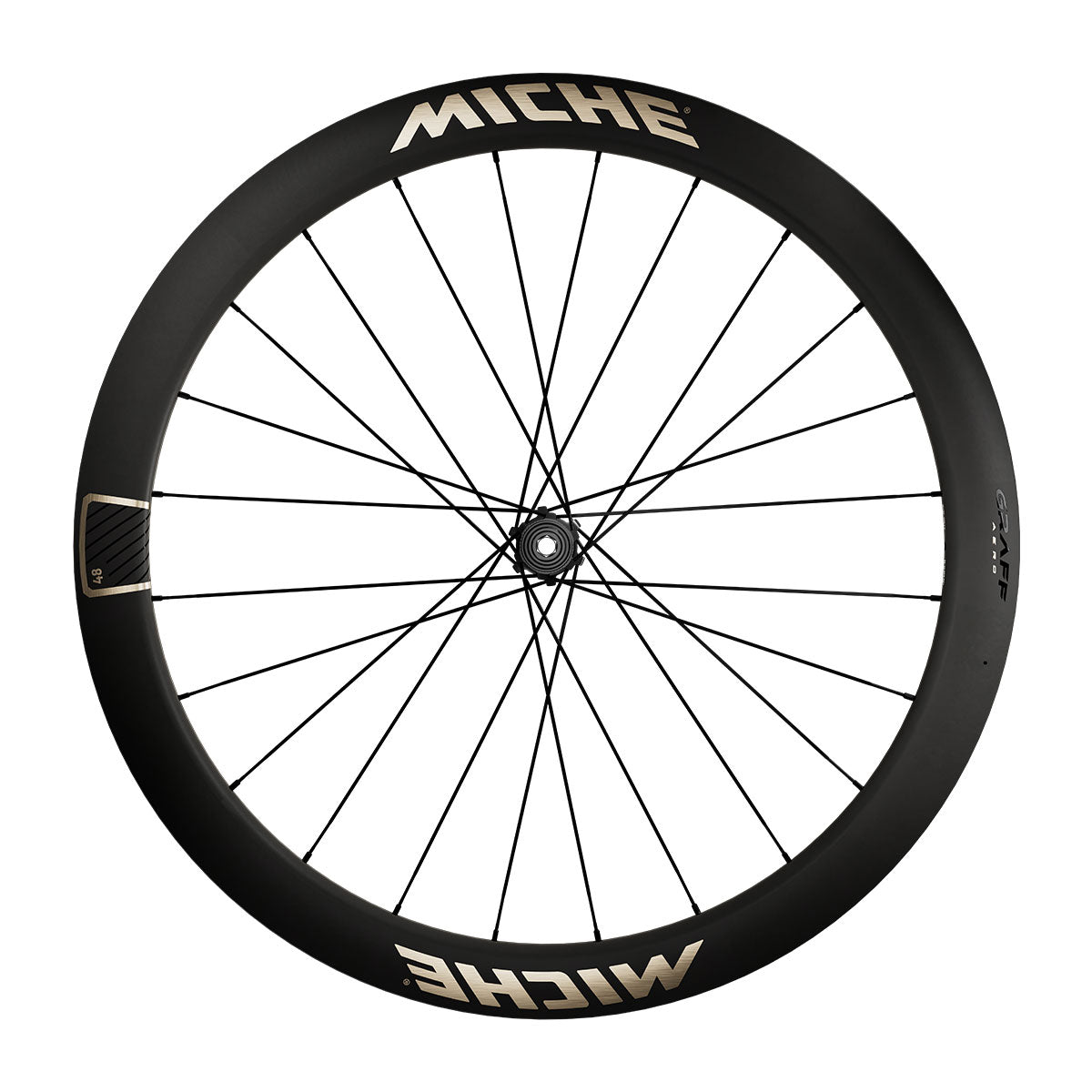

MICHE WHEELSET GRAFF AERO 48 SHIMANO OEM

Name: MICHE WHEELSET GRAFF AERO 48 SHIMANO OEM
Brand: Wilier
SKU: WE7087
Price: 999.00 USD
Availability: InStock

SKU: WE7087

$999.00

$2,266.00

Graff Aero 48

Precision, control and raw speed

Miche expands its high-performance lineup with the new Graff Aero 48: carbon wheels engineered for top-level gravel racing.

The result of a rigorous, detail-focused development process, the Graff Aero 48 were created in close collaboration with some of the best gravel specialists. Among them, Traka and Unbound winner Ivar Slik played an active role, bringing real-world racing experience into the project.

The outcome? A wheelset that pushes the boundaries of performance, reliability, and control — across all types of terrain.

Every aspect is designed for riders with a racing mindset: athletes for whom every second, every turn, every watt counts.

MICHE WHEELSET GRAFF AERO 48 SHIMANO OEM

$999.00

$2,266.00

Hookless Rim
The UD carbon rim features a 48mm depth and a 27mm internal width with a TSS hookless profile, made specifically for tubeless-ready tires ranging from 35mm to 60mm.

The optimized rim shape, paired with double-butted aero spokes, delivers superior aerodynamic efficiency and ride stability — even at high speeds and on rough terrain.

Miche's Hubs
CX-Graff hubs are fitted with Miche’s high-smoothness bearings for maximum fluidity and long-term durability. The 24-spoke lacing pattern (12+12) is engineered to optimize tension distribution and load absorption, tailored to the needs of competitive gravel racing.

Race ready. Gravel proven
With a total weight of just 1,525 grams, the new Graff Aero 48 have been tested under the harshest race conditions — and are ready to become a benchmark for elite gravel performance.

Miche Graff Aero 48 – Race ready. Gravel-proven.

Identification
Code	WHGRA1B
ASTM Category	2
Rim
Rim Material	UD Carbon fibre
Rim Profile	Front: 48 mm / Rear: 48 mm
Rim Dimension	622x27 TSS
Tyre
Tyre Type	Tubeless
Tyre Dimension	35 mm ÷ 60 mm
Hubs & Bearings
Hubs	AL 7075 T6
Bearings	MICHE® 2RS
Freehub Body	AL 7075 T6 - Steel
Transmission	RES 30 Rapid Engagement System
Spokes & Nipples
Spokes	Stainless steel black / aero / straight pull / double butted
Nipples	AL 7075 T6 / Black
Assembly	24 - 24 / Crossing
Axle Compatibility
O.L.D.	100 - 142 mm
Front Axle	12 mm
Rear Axle	12 mm
Braking
Braking System	Disc Center Lock
Compatibility
Drivetrain Compatibility	Campagnolo® N3W, Shimano® HG - Microspline, SRAM® XDR
Weight & Limits
Weight	1525 g ±3% (Tubeless Ready Kit +12 g)
Max Load (bike + user)	108 kg
Included Accessories
Accessories	Wheels bag / Instruction manual / Brake rotor lock ring / Hub adapter IS6

Features

Specifications

Identification
Code	WHGRA1B
ASTM Category	2
Rim
Rim Material	UD Carbon fibre
Rim Profile	Front: 48 mm / Rear: 48 mm
Rim Dimension	622x27 TSS
Tyre
Tyre Type	Tubeless
Tyre Dimension	35 mm ÷ 60 mm
Hubs & Bearings
Hubs	AL 7075 T6
Bearings	MICHE® 2RS
Freehub Body	AL 7075 T6 - Steel
Transmission	RES 30 Rapid Engagement System
Spokes & Nipples
Spokes	Stainless steel black / aero / straight pull / double butted
Nipples	AL 7075 T6 / Black
Assembly	24 - 24 / Crossing
Axle Compatibility
O.L.D.	100 - 142 mm
Front Axle	12 mm
Rear Axle	12 mm
Braking
Braking System	Disc Center Lock
Compatibility
Drivetrain Compatibility	Campagnolo® N3W, Shimano® HG - Microspline, SRAM® XDR
Weight & Limits
Weight	1525 g ±3% (Tubeless Ready Kit +12 g)
Max Load (bike + user)	108 kg
Included Accessories
Accessories	Wheels bag / Instruction manual / Brake rotor lock ring / Hub adapter IS6
