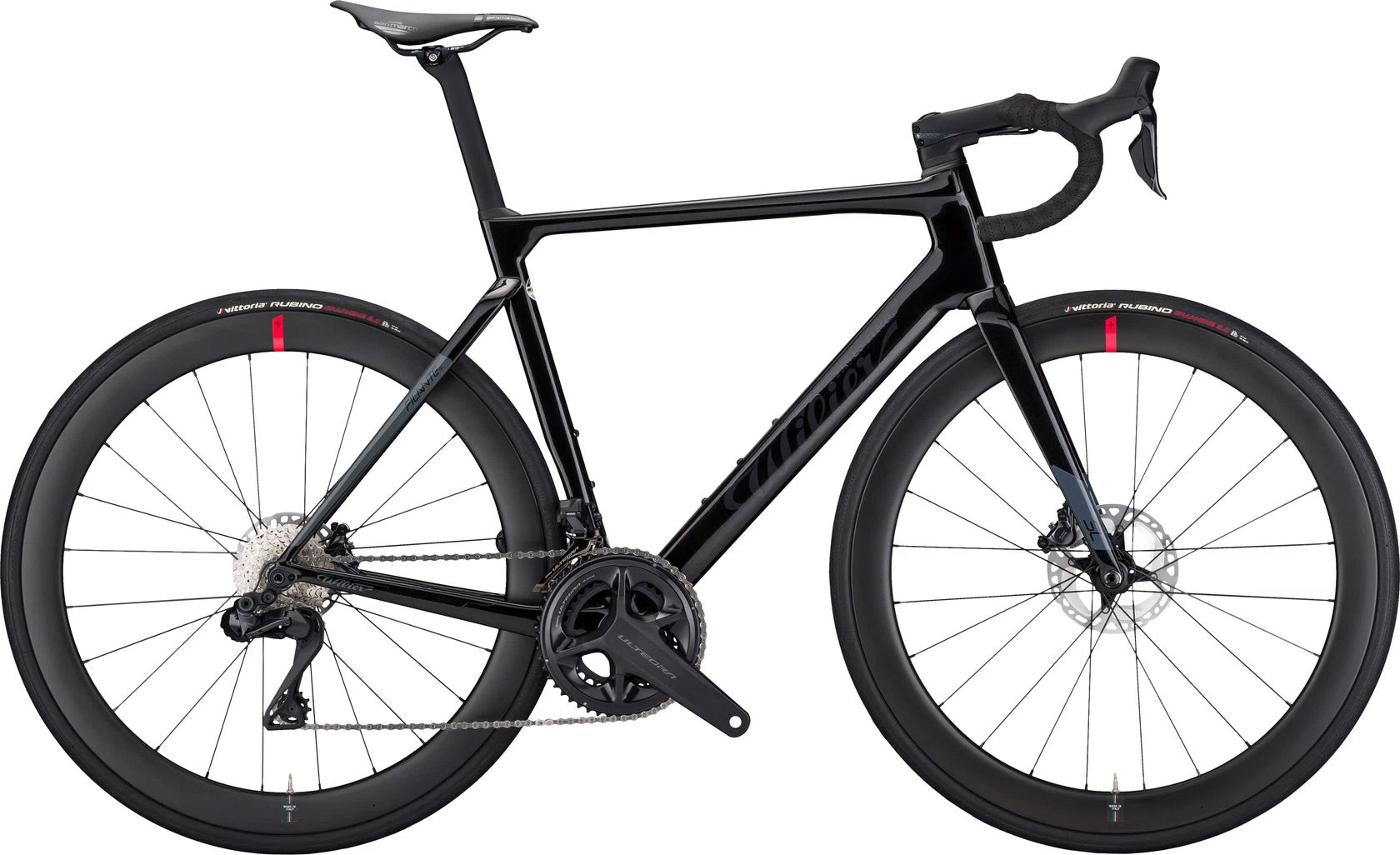

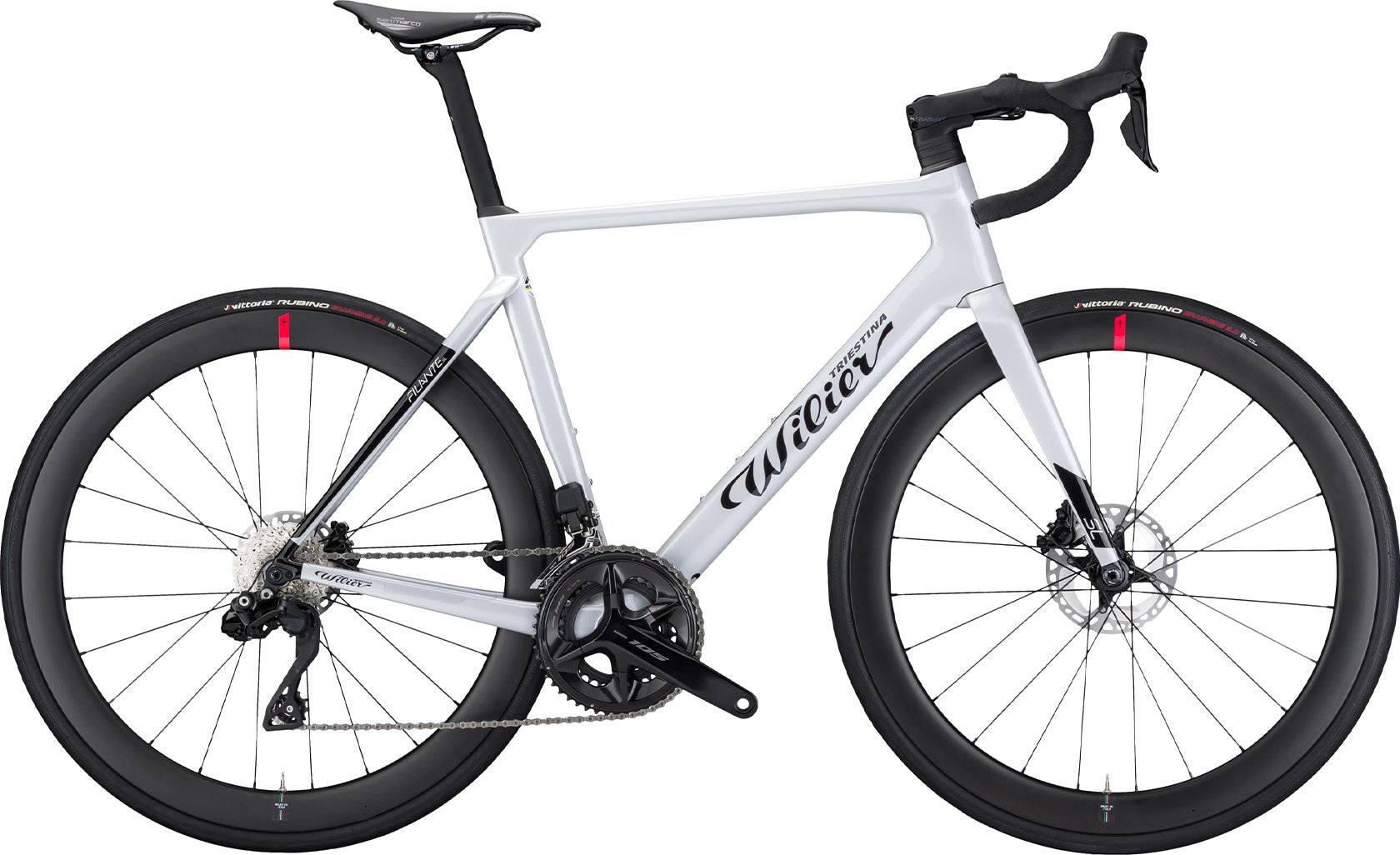

FRAMESET WILIER FILANTE SL DISC + BARRA SL

WORLD TOUR AERODYNAMICS AND DESIGN

The carbon fiber is used in a frame that mirrors the shape of the Filante SLR used by the Astana Qazaqstan Team's professional cyclists. What changes is the frame module, using different fabrics made of composite material to create a new lamination. Though the substance may change, the aerodynamic performance does not.

SIX FRAME SIZES, GLOSSY FINISH

The Filante SL echoes the racing geometries of its big sister, the SLR. Six available frame sizes: XS, S, M, L, XL, XXL. Three available colors with a glossy finish.

SMART INTEGRATION

No visible cables. The aluminum alloy vertical tube and aero handlebar fully maintain the flair of the Filante product range. A technical choice that makes it possible to contain the price without compromising the performance and the possibility to easily personalize the setup.

SL PHILOSOPHY

In addition to expanding the product range, the goal of each SL series bike is to provide the best quality/price/performance ratio. The use of technologies and setups that are less extreme aims to preserve the overall quality of each product. Did we succeed? You be the judge.

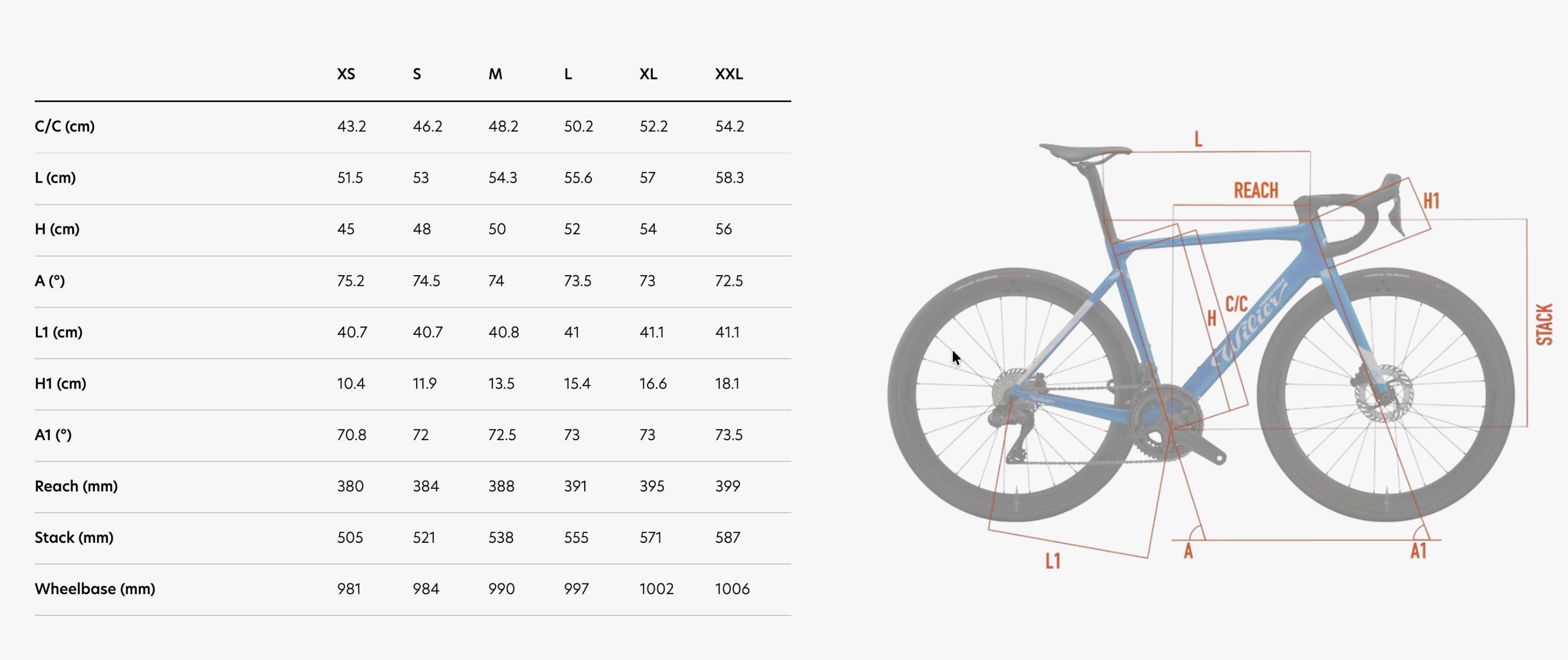

IMPROVE YOUR RIDING POSITION WITH ACCU-FIT

Correct positioning in the saddle is one of the most essential issues for cyclists, especially for competitors and long-distance cyclists. While with steel bikes, it was relatively easy to measure the length of the tubes, as the years passed, and with the introduction of sloping top tubes, defining measurements has become increasingly complex. So, in addition to the classic values of height, length and angles, we now consider reach & stack data and horizontal and vertical distance values between the center of the bottom bracket and the center of the upper part of the head tube.

But modern bicycles have made measurement even more complex since they are complete and complex systems based on the combination of the frame, handlebar spacers and monocoque handlebars. When buying a bike, it is essential to know the size of every bike element based on your body size and shape. As manufacturers of frames and monocoque handlebars, we have added a new value to the measurement of the frame which combines the length of the head tube and the dimensions of the monocoque handlebar.

This coordinate, called ACCU-FIT, determines the distance between the bottom bracket's center and the handlebar's center. It is clear that for every model there are as many coordinates as frame sizes multiplied by the number of handlebar sizes and the configuration of spacers.

FRAME: FILANTE SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGTH

H-BAR: BARRA SL

STEM: STEMMA SL

FORK: FILANTE SL - CARBON MONOCOQUE NHU MOD + HIGH IMPACT STRENGTH

AXLE: THRU AXLE 12X122 FRONT,  12X168 REAR

SEATPOST: FILANTE SLR CARBON WILIER CUSTOM MADE -15mm/0mm

HEADSET: WILIER CUSTOM BEARINGS SUPERSLIM

FORK WEIGHT: 370 g +/- 5%

FRAME WEIGHT: 1010 g +/- 2%

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
