Wilier

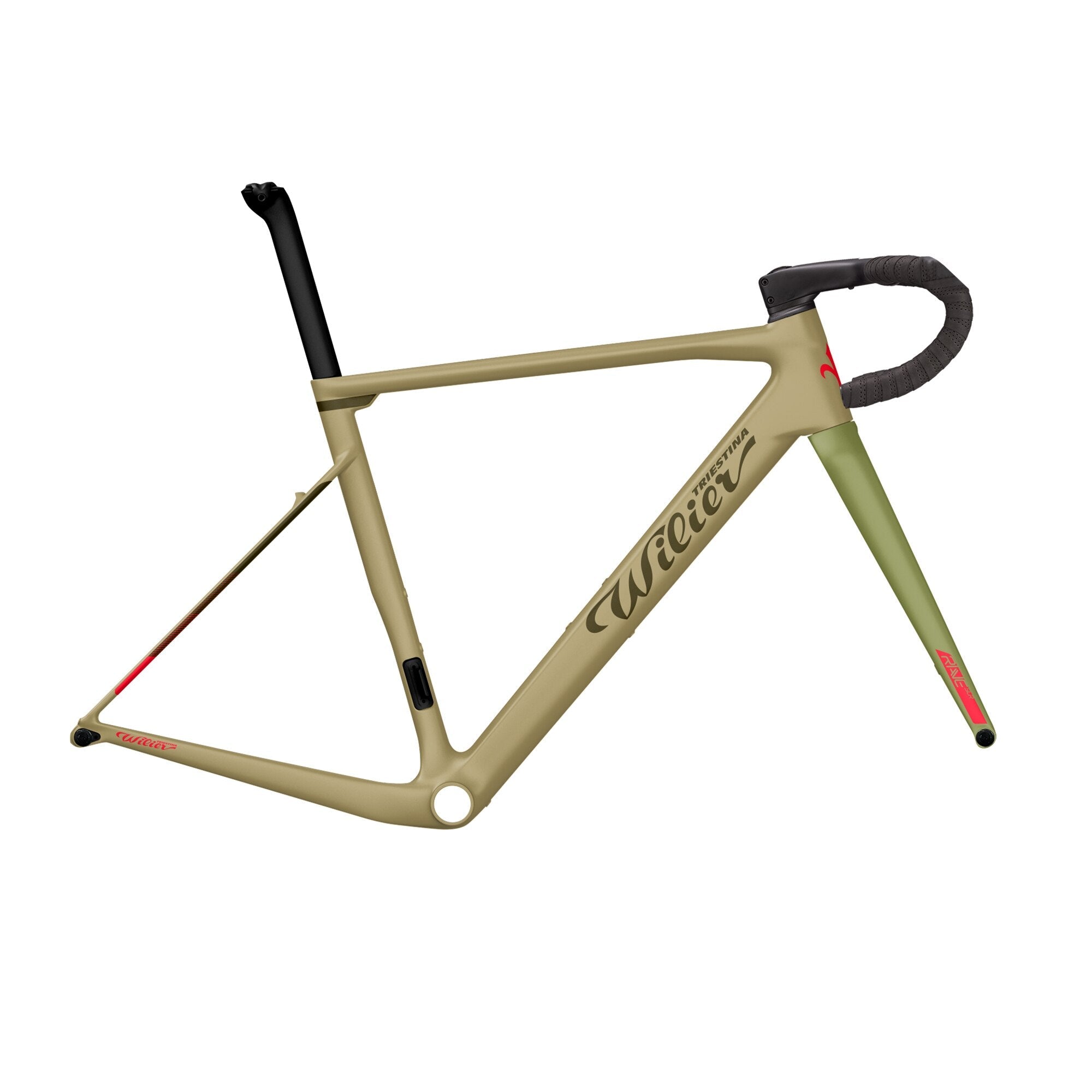

FRAMESET WILIER RAVE SLR + J-BAR

SKU: BI4366

$3,200.00

$5,900.00

RAVE SLR

EXPECT THE UNEXPECTED

Traveling new roads is not just an attitude. It can also become the target for someone who has been making bicycles for over 116 years. With Rave SLR we have set our sights on new horizons, creating a product with two separate souls, perfect for all-road, perfect for gravel, but the same incredible racing inclination. Rave SLR will be a new cycling experience, unexpected for many.

Color:BLACK/GREY

Variant

FRAMESET WILIER RAVE SLR + J-BAR

$3,200.00

$5,900.00

ROAD OR GRAVEL SETUP
Both Rave SLR colors can be outfitted with top-end road accessories (new Shimano Dura-Ace Di2, new Shimano Ultegra Di2, Sram Force AXS) or high-range gravel accessories (Campagnolo Ekar, Shimano GRX, or the new Sram Force AXS XPLR) with road or gravel tires up to 42mm.

LIGHTWEIGHT
To create a light frame, we used the same carbon technology mix found in the Filante SLR and the Wilier 0 SLR, just to give an idea.

RESPONSIVE
To create a reactive frame, we've channeled all the experience gained in the use of technopolymers, mixing carbon with special viscoelastic fibers such as Liquid Crystal Polymers. Construction technologies borrowed from those used for the Filante SLR and the Wilier 0 SLR, products that offer an excellent riding quality recognized by the most demanding professional riders.

HIGH PERFORMING
Performance has always been our fixation. And the genesis of the Rave SLR is no different. If we translate performance into concrete aspects, it's about a frame that is light, responsive (stiff where necessary), and features racing geometries.

BALANCED RACING GEOMETRIES
To create a frame with balanced racing geometries, we started with top-range road racing references and mixed them with frame parts of endurance and gravel origin: all without distorting the performance target that we set for ourselves at the start of the design phase. A slightly higher stack and a somewhat shorter reach compared to a pure competition bike, combined with the available carbon monocoque handlebars, become the perfect synthesis between high performance and comfort.

HANDLEBAR AND INTEGRATED CABLES
In addition to being lightweight, the 0-Bar and J-Bar monocoque handlebars available on the Rave SLR, house the brake and controls cables, routing them inside the frame. The handlebar and stem combo feature an essential design, with sinuous and rounded lines to guarantee the best possible ergonomic grip and provide the Rave SLR with the elegance of Wilier Triestina's high-end products.

EASY-FIT SPACERS
The spacers between the frame head tube and the handlebar are made of a high-rigidity composite material, with a special cavity for routing the cables. They consist of two parts for quick assembly and disassembly, without interfering with the cables that run from the handlebar to the frame.

Features

LIGHTWEIGHT
To create a light frame, we used the same carbon technology mix found in the Filante SLR and the Wilier 0 SLR, just to give an idea.

Specifications

Frame & Fork
Frame	Rave SLR – Carbon Monocoque HUS Mod + Crystal Liquid Polymer
Frame Weight	950 g +/- 5%
Fork	Rave SLR – Carbon Monocoque HUS Mod + Crystal Liquid Polymer
Fork Weight	415 g +/- 5%
Headset	FSA Custom Bearings MR137
Axle (Front)	Thru-Axle 12x122mm
Axle (Rear)	Thru-Axle 12x168mm
Cockpit
Handlebar	J-Bar Integrated Carbon
Saddle & Seatpost
Seatmast	Rave SLR Custom Made -15mm / 0mm
Saddle	Not Included

MODEL	SIZE	CRANK ARM	STEM	BAR
Rave SLR	XS	170	95 0-BAR	40 0-BAR
Rave SLR	S	170	95 J-BAR	43 J-BAR
Rave SLR	M	172.5	95 J-BAR	43 J-BAR
Rave SLR	L	172.5	105 J-BAR	44 J-BAR
Rave SLR	XL	175	115 J-BAR	45 J-BAR
Rave SLR	XXL	175	125 J-BAR	45 J-BAR

Disclaimer

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
