FRAMESET WILIER JENA DISC (INTEGRATED CABLES)

Wilier

FRAMESET WILIER JENA DISC (INTEGRATED CABLES)

SKU: FR9986

$1,800.00

$3,190.00

Jena

Free to choose

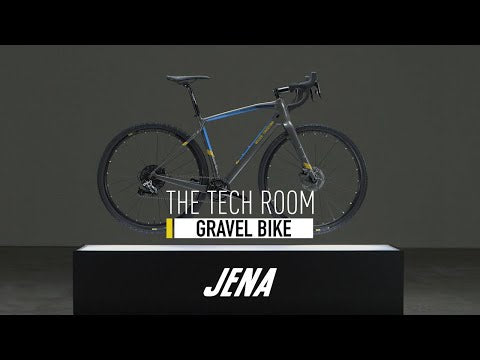

Jena is a carbon gravel bike, designed to give you more freedom of choice when you go out for a ride. Jena was designed to satisfy any of your needs, whether it is performance on dirt roads and single track, or adventure, exploration, and bikepacking. Jena is a light, reactive, and easy-to-handle bike with racing-comfort geometries, and able to adapt to the multiple uses required of a gravel bike.

Color:PATTERNED BRONZE

Variant

FRAMESET WILIER JENA DISC (INTEGRATED CABLES)

$1,800.00

$3,190.00

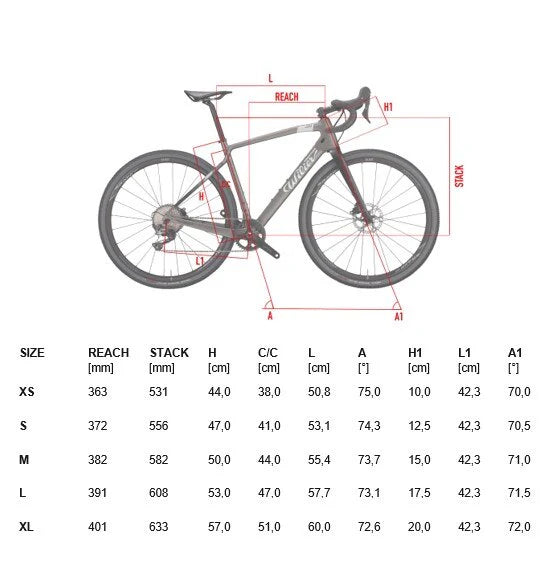

RACING COMFORT GEOMETRIES
Jena's 60TON monocoque carbon frame comes in 5 sizes (from XS to XL) with geometries that allow a high level of comfort, without sacrificing reactivity and performance, which is very close to one of Wilier's racing bikes.
The head tube, with a more open angle, ensures riding quality and stability on the most difficult tracks. On the other hand, the rear triangle was designed to have a more distinct response to vertical stress, thus absorbing a great part of the vibrations generated by the ground imperfections.

USABILITY
There are no limits on Jena's usability and the available configurations. The span between frame/fork and wheels allows you to install generous tires on 28” wheels or MTB wheels with a 650B diameter. With 28” wheels you can install tires up to 44 mm wide, whereas in the case of 650B MTB wheels, you can even install 48 mm wide tires, which is equivalent to 1.95” (tested on Vittoria tyre).

There are numerous available supports that allow the installation of bottle holders, bags, carriers or mudguards. On the front fork, for example, you can install two bottle holders or one lowrider carrier for bags.

FLATMOUNT DISC BRAKES
Jena is available only with flat mount disc brake. The standard installed rotor has a 160 mm diameter. The wheel through pins have a 12mm diameter, 100mm long on the front fork and 142mm on the rear one.

KAMM TAIL DESIGN
An aerodynamic oblique tube was developed for Jena. This gives the classic truncated tail shape of Wilier's aerodynamic frames.

REMOVABLE DERAILLEUR SUPPORT
The derailleur support can be removed in the case of a single-ring group, which is a transmission widely used by gravel enthusiasts. At any moment, you can choose a solution with a double or single crankset, without compromising on the bike look.

Features

KAMM TAIL DESIGN
An aerodynamic oblique tube was developed for Jena. This gives the classic truncated tail shape of Wilier's aerodynamic frames.

Specifications

FRAME: JENA - CARBON MONOCOQUE 60TON

FORK: JENA - CARBON MONOCOQUE 60TON

H-BAR: RITCHEY ERGOMAX COMP (NOT INCLUDED)

STEM: STEMMA S

HEADSET: WILIER CUSTOM BEARINGS SUPERSLIM

AXLE: THRU-AXLE 12X125 FRONT, 12X171 REAR

SEATPOST: RITCHEY COMP 2-BOLT V2 ALU (NOT INCLUDED)

FRAME WEIGHT: 995 g +/- 5%

FORK WEIGHT: 450 g +/- 5%

MODEL	SIZE	CRANK ARM	STEM	BAR
JENA DISC	XS	170	RITCHEY 90	40 RITCHEY
JENA DISC	S	170	RITCHEY 90	40 RITCHEY
JENA DISC	M	172.5	RITCHEY 100	42 RITCHEY
JENA DISC	L	172.5	RITCHEY 110	42 RITCHEY
JENA DISC	XL	175	RITCHEY 120	44 RITCHEY

Disclaimer

THE PRICES, SPECIFICATIONS AND PHOTOS SHOWN IN THIS CATALOG ARE NOT SUBJECT TO ANY CONTRACTUAL OBLIGATION AND MAY CHANGE DURING THE SEASON
